What Is PXI?

PXI is a computer for test engineers. It is a test and measurement platform that combines a controller with measurement instruments in a multi-slot chassis. Engineers use NI PXI to build high-performance, mixed-measurement systems for validation and production test.

""

Industry Standard

NI created PXI to be an open standard for test hardware. PXI is now a leading industry standard for automated test with more than 60 vendors offering specialty modules.

""

Built for Automated Test

NI PXI hardware delivers the production test results you need. It offers best-in-class accuracy, industry-proven reliability, and unparalleled timing and synchronization capabilities.

""

Scalable

PXI’s architecture makes it possible to synchronize measurements across multiple modules or multiple chassis, so you can add to your systems as requirements change.

""

Software-Defined

Unlike box instruments that have a predefined functionality, NI PXI is open so engineers can develop measurement and analysis programs specific for their application using LabVIEW, Python, or other languages.

Why Choose PXI?

blowout view of ni pxi chassis

Engineers choose NI PXI because of its high measurement performance and proven history of lowering test time and reducing the overall cost of test. The combination of PXI’s high performance, modularity, and software connectivity make it ideal for test applications that require high accuracy, high-channel count, mixed measurements.

Best for:

  • Production test systems for electronic devices
  • Automated validation test
  • High-channel, high-speed test applications
  • Combining instruments, sensor, and electrical measurements
Download the PXI system brochure

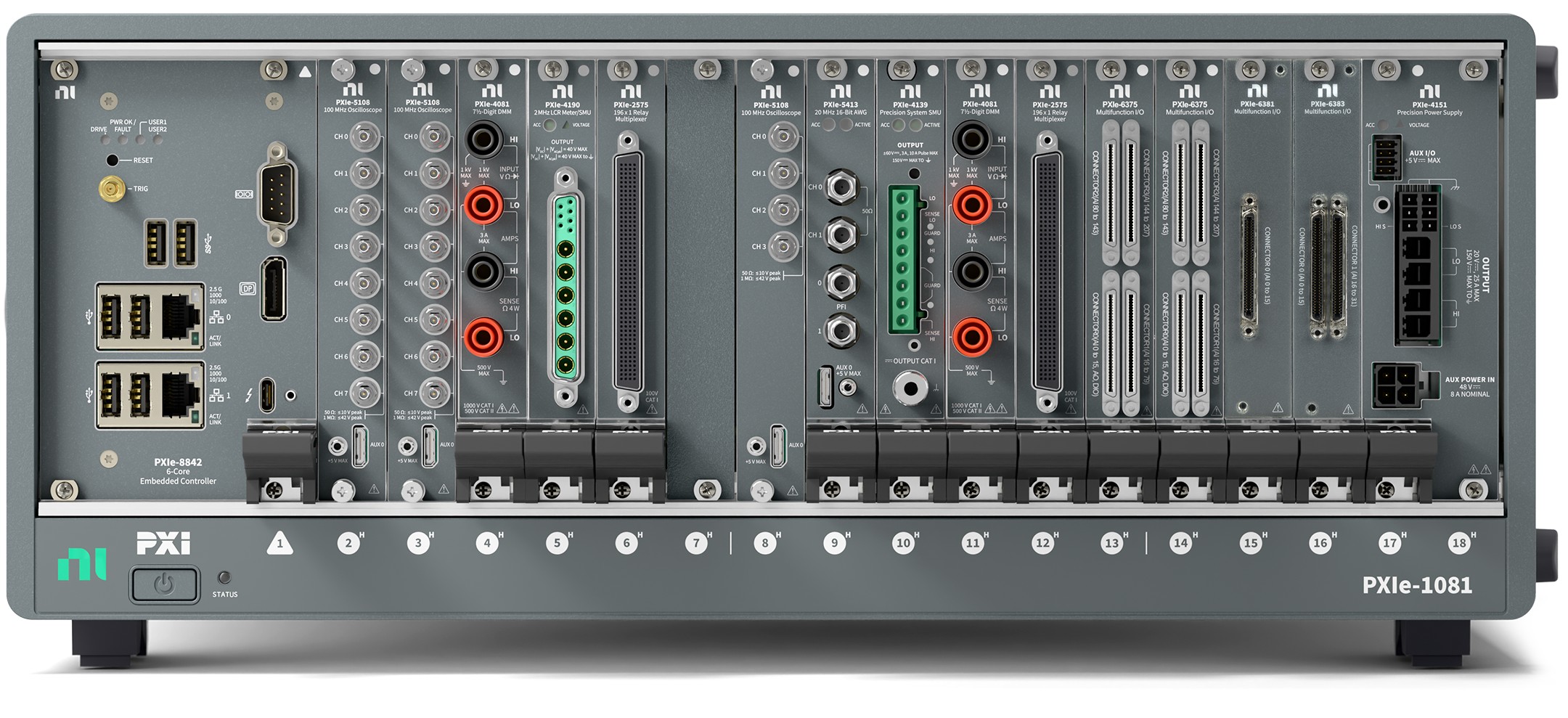

component view of PXI

PXI System Components

PXI systems are composed of three main hardware components: Chassis, controller, and modules. System software is both reconfigurable and customizable.

Chassis

Controller

Modules

Software

Services

 NI Software for your PXI System

Test Workflow

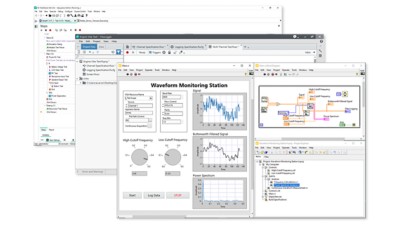

Test Workflow is a bundle of NI’s test software, including LabVIEW, TestStand, and more. From controlling your PXI instrument to deploying test sequences across your production floor, Test Workflow has what you need.

Learn more

InstrumentStudio™ Software

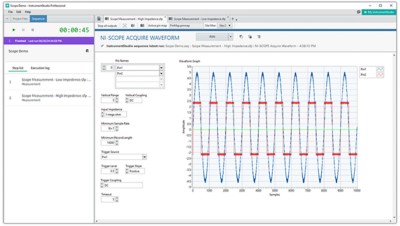

InstrumentStudio software is free application software for your PXI system. This software helps you to quickly take measurements and efficiently monitor and debug test systems.

Learn more

TestStand

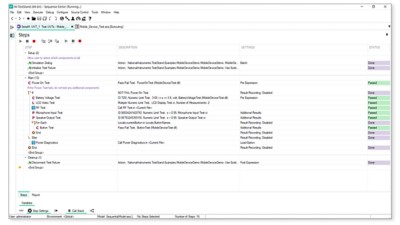

TestStand is NI’s test executive software for engineers in validation and production. TestStand has native features for automating a sequence of tests, reusing code, and generating reports.

Learn more

Chassis

pxi chassis are available in various sizes, from 4 to 18 slots

The chassis is the backbone of a PXI system and is comparable to a PC’s mechanical enclosure and motherboard. It provides power, cooling, and a communication bus to the system, and synchronizes the instrument modules. Chassis range in size from four to 18 slots to fit the needs of your application, whether you require a portable, benchtop, rack-mount, or embedded system.

View PXI chassis

Controller

integrated pxi controllers contain everything you need to run your pxi system without an external pc

PXI controllers are either embedded or remote. Embedded controllers contain everything you need to run your PXI system without an external PC, while remote controllers let you control your PXI system from desktop, laptop, or server computer. Select the controller to meet your needs, embedded ones offer higher performance, whereas remote ones are more cost effective.

View PXI controllers

Modules

NI offers more than 600 input and output PXI modules ranging from DC to mmWave. This includes modular instruments, such as oscilloscopes and digital multimeters. Because PXI is an open industry standard, nearly 1,500 products are available from more than 60 different instrument vendors.

View all PXI modules

Get started with a PXI Instrument Bundle

Image alt text: PXI Instrument Bundles include a 5-slot Thunderbolt™ controlled PXI chassis, with an instrument in one slot and 4 remaining slots for future upgrades

PXI Instrument bundles are preconfigured sets of NI’s most popular, high-quality instruments. Each bundle includes a PXI module in a five-slot Thunderbolt™ controlled PXI chassis, so you can get started with ease.

Learn more
