The following diagram illustrates how TSM coordinates test program execution and handler/prober actions.

Note Executing a test program in a TSM operator interface is typically faster than executing the test program in the TestStand Sequence Editor development environment.

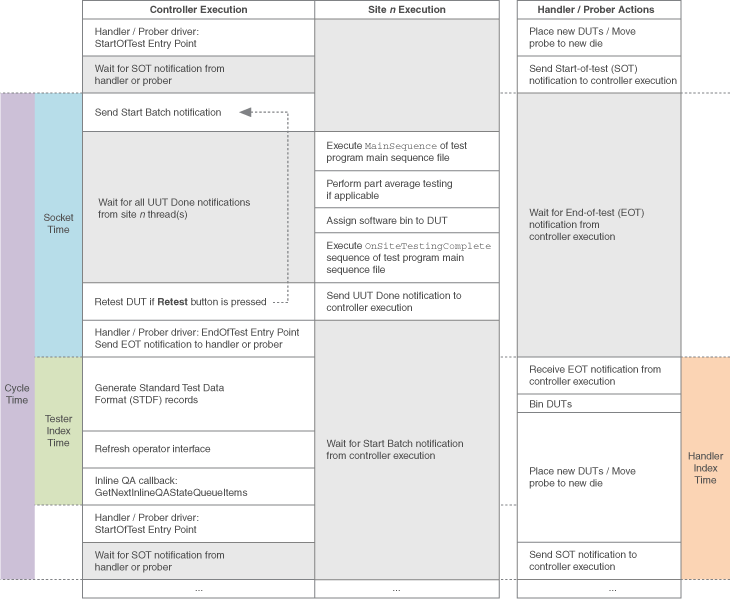

Batch Model

When you execute tests using the Batch process model, a controller thread controls the core tester software functionality and sends notifications to and receives notifications from a separate thread for each site execution.

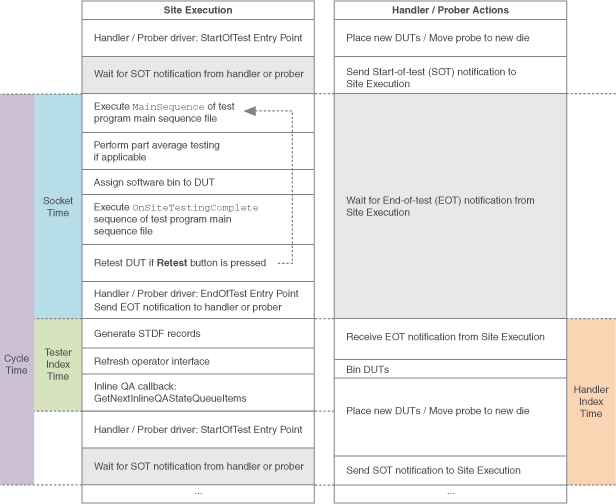

Sequential Process Model
