Owning Palette: TestStand

Sets the value of the SequenceContext property the Lookup String parameter specifies. The data type you wire to the New Value input determines the polymorphic instance to use. This VI does not return an error if the Lookup String parameter is invalid and the Insert If Missing parameter is TRUE.

Boolean Array

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Boolean

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Signed 8-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Unsigned 8-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Signed 16-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Unsigned 16-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Signed 32-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Unsigned 32-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Signed 64-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Numeric Array {Unsigned 64-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Signed 8-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Unsigned 8-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Signed 16-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Unsigned 16-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Signed 32-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Unsigned 32-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Signed 64-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Number {Unsigned 64-bit Integer}

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

Object

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

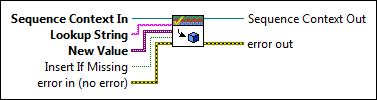

Reference

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

String Array

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.

String

	Sequence Context In specifies an ActiveX reference to a TestStand SequenceContext object.
	Lookup String is a chain of period-delimited subproperties that specifies a particular subproperty of the SequenceContext object the Sequence Context In parameter specifies. The property cannot be empty and must contain only letters, numbers, and underscores. Property names cannot contain spaces or start with a number. For example, Locals.MyVariableName_2000 is a valid property name. Names of elements in a property object array can contain any character. Sequence names and step names are examples of valid named array elements.
	New Value specifies the new value for the SequenceContext property the Lookup String parameter specifies.
	Insert If Missing specifies to insert the SequenceContext property the Lookup String parameter specifies if the property does not currently exist. The default is FALSE.
	error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Sequence Context Out returns the Sequence Context In parameter unchanged.
	error out contains error information. This output provides standard error out functionality.
