Switch Load and Signal Conditioning (SLSC)

Switch, Load, and Signal Conditioning (SLSC) is the NI modular hardware platform designed to bridge the gap between real‑world devices and automated test systems. It provides interchangeable modules for tasks such as signal conditioning, switching, load simulation, sensor emulation, and fault insertion, all within a standardized, reusable form factor.

SLSC tackles one of the hardest parts of building and maintaining test systems: interfacing reliably with real electrical signals and devices. In many validation, hardware-in-the-loop (HIL), or production test environments, engineers must deal with unique sensor types, nonstandard voltages, custom loads, and safety‑critical fault conditions. SLSC allows these interface requirements to be handled in dedicated hardware modules rather than with point-to-point wiring or one‑off designs.

By decoupling signal interface hardware from the rest of the test system, SLSC enables teams to reuse and reconfigure test setups more easily as products evolve. Engineers can swap or update SLSC modules without redesigning core test infrastructure, helping reduce development time, improve test consistency, and extend the usable life of test systems across multiple programs and platforms.

In practice, this modular approach supports faster system changes, higher confidence in test coverage, and lower long‑term maintenance effort, making SLSC especially valuable in industries where test requirements change frequently or systems must scale across many product variants.

Engineers use SLSC hardware as a modular interface layer between their measurement or control system and the device under test (DUT). It is commonly applied in HIL, validation, and functional test systems, where accurate simulation of real‑world electrical behavior is critical.

In a typical setup, engineers route signals from platforms such as PXI or CompactRIO through the SLSC chassis before the signals reach the DUT. SLSC modules then perform functions that are difficult or impractical to handle directly on standard I/O hardware, such as signal conditioning, switching, load simulation, or fault insertion.

SLSC hardware is designed to be highly reconfigurable, so engineers can adapt test systems as requirements change without extensive rework. Core functions such as switching states, loads, signal conditioning, and fault insertion are defined in software using NI tools like VeriStand or LabVIEW, allowing many changes to be made by updating configuration files rather than modifying hardware connections.

That software flexibility is reinforced by the SLSC modular hardware architecture. Engineers can add, remove, or replace individual SLSC modules in the chassis to support new signal types or test scenarios, while standardized connectors and interfaces minimize the need for rewiring. This combination lets teams respond quickly to new DUT variants or expanded test coverage and makes SLSC well‑suited for test systems that are expected to evolve over time.

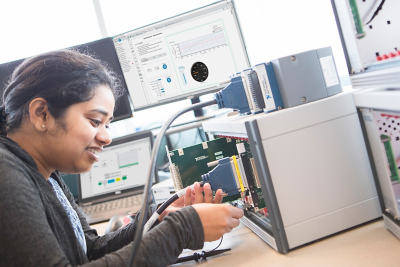

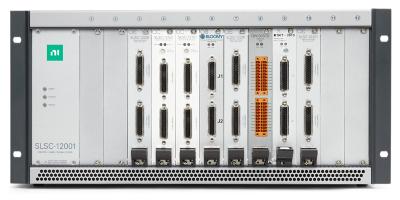

Engineers typically start with NI SLSC hardware by first understanding how the platform fits into their existing test or validation system. SLSC is designed to extend NI platforms such as PXI and CompactRIO by adding a dedicated hardware layer for signal conditioning, switching, load simulation, and fault insertion. The starting point is usually an SLSC chassis, which provides power, cooling, and communication for a set of modular SLSC plug‑in boards that are selected based on the signals and behaviors the test system needs to handle.

Once the hardware is in place, engineers use NI software (most commonly NI VeriStand, LabVIEW, or NI‑SLSC drivers) to discover, configure, and control the installed SLSC modules. These tools allow users to define how signals are routed, conditioned, or switched during automated tests, including applying loads or introducing faults as part of a test sequence. This software‑configured approach lets teams bring up a functional system quickly without extensive custom wiring or low‑level hardware management.

For more specialized requirements, engineers can choose from a growing ecosystem of third‑party SLSC modules or design their own using the NI SLSC Module Development Kit. You can also find getting‑started guides, user manuals, and example projects to help teams move from initial setup to a working system. As test needs evolve, engineers can expand or reconfigure their SLSC setup by adding or swapping modules without redesigning the rest of the test architecture.
