Sound and Vibration Measurement Hardware

Sound and vibration modules connect to sensors like microphones and accelerometers to capture acoustic and vibration data from machines, vehicles, or devices. The hardware conditions and digitizes signals, while software such as LabVIEW or FlexLogger provides tools for real-time acquisition, visualization, and advanced analysis. Engineers use sound and vibration products for tasks like audio performance testing, predictive maintenance, and NVH studies to improve reliability, comfort, and compliance.

When evaluating sound measurement systems, engineers look for high dynamic range, low noise floor, and accurate frequency response to capture subtle acoustic details. Other key features include multichannel capability, microphone compatibility, and integration with analysis software like NI LabVIEW or FlexLogger for real-time visualization and advanced processing. Additionally, features such as SPL measurement, FFT analysis, and calibration tools matter for audio testing and NVH work.

For vibration measurement, engineers prioritize wide frequency range, high sensitivity, and robust signal conditioning to accurately measure acceleration, velocity, or displacement. Compatibility with accelerometers, low cross-axis sensitivity, and high sampling rates are critical for detecting faults and dynamic behaviors. Integration with software for order tracking, modal analysis, and machine condition monitoring ensures actionable insights for predictive maintenance and structural testing.

Engineers rely on microphones for acoustic measurements and accelerometers for vibration analysis because they offer the accuracy and sensitivity needed for real‑world testing. Microphones capture noise, sound quality, and NVH characteristics, while accelerometers detect subtle changes in motion, structure, and machine health. NI systems pair seamlessly with both sensor types, providing stable power, clean signal conditioning, and high‑resolution digitization. This combination helps teams run reliable acoustic tests, monitor equipment health, and validate designs under dynamic operating conditions.

IEPE technology simplifies the setup of vibration and acoustic sensors by integrating the signal‑conditioning electronics directly into the sensor. This allows engineers to use lightweight cabling, reduce noise, and collect stable, high‑quality data with minimal configuration effort. With NI hardware providing compliant excitation and precise measurement capabilities, IEPE sensors become a dependable choice for demanding tasks like NVH analysis, structural testing, and condition monitoring. The result is improved signal quality, reduced interference, and data that stays reliable even during long test sessions.

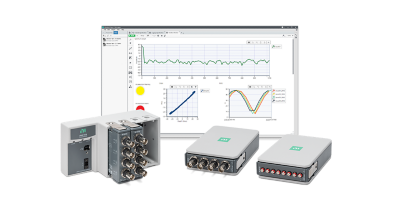

The complete and integrated NI solution combines high-performance sound and vibration hardware with powerful software like LabVIEW and FlexLogger. This integration enables straightforward data acquisition, real-time visualization, and advanced analysis without complex setup. Engineers benefit from scalable systems that support everything from single-channel measurements to large, multichannel configurations. NI products also provide precise synchronization, high sampling rates, and robust signal conditioning, ensuring accurate results for demanding applications like NVH testing, audio validation, and predictive maintenance. Plus, the modular NI approach allows easy customization and future expansion.

NI software gives engineers a streamlined environment for transforming raw sound or vibration data into meaningful frequency‑domain insights. FFT tools help reveal resonances, harmonics, and noise sources, while order‑tracking features provide clarity on how rotating machinery behaves as speed changes. With built‑in functions for filtering, resampling, and visualizing spectral content, the workflow is both powerful and approachable. Whether diagnosing mechanical issues or validating system performance, NI analysis tools allow teams to move from data to decisions with confidence.
