Gets or sets the width of the flange that appears on the right end of a pipe network when you first place the Multi-Segment Pipe control on the front panel window.

The flange width is the distance, in pixels, from the edge of the adjoining pipe segment to the edge of the flange. The maximum flange width is 500 pixels. The minimum flange width is one pixel. LabVIEW returns an error if you specify a value greater than the maximum or less than the minimum flange width.

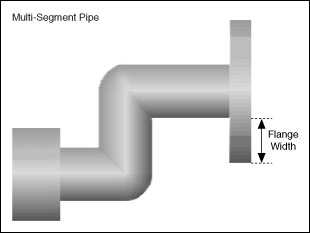

The following illustration shows the flange width.

You also can set the flange width interactively.

Remarks

The following table lists the characteristics of this property.

Short Name Flange2Width
Data type cu32.png
Permissions Read/Write
Available in Run-Time Engine Yes
Available in Real-Time Operating System Yes
Settable when the VI is running Yes
Loads the front panel into memory No
Need to authenticate before use No
Loads the block diagram into memory No
Remote access allowed Yes
