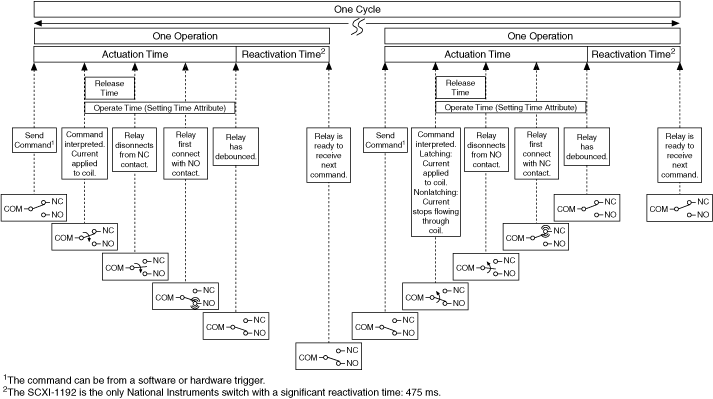

The following diagram represents the process an electromechanical SPDT general-purpose relay performs during a cycle.

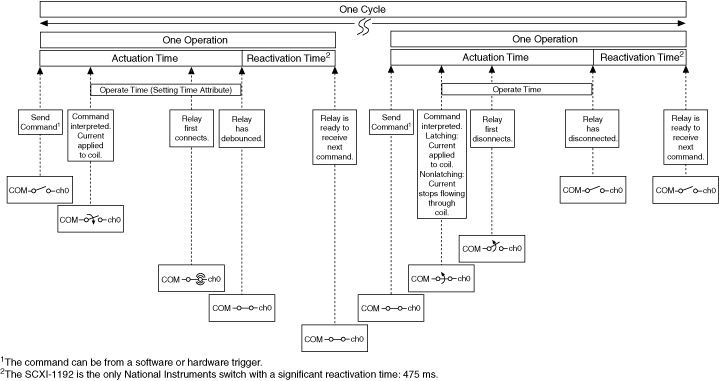

The following diagram represents the process an electromechanical SPST general-purpose relay performs during a cycle.

For certain situations you may need to increase the default settling time. Refer to Adding Additional Settling Time for more information on increasing the default settling time.
