Multipath Fading Emulator

Skytechnology

The Multipath Fading Emulator helps you emulate multipath fading effect of wireless communication with compatible PXI Vector Signal Transceivers.

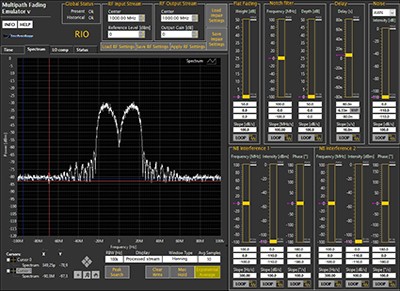

The Multipath Fading Emulator (MFE) is a software add-on for LabVIEW that helps you emulate the selective fading due to multipath propagation on microwave radio paths using the PXI Vector Signal Transceiver (VST). The MFE implements the “Two-Rays” channel model using a custom FPGA configuration for the VST. You can simulate the effect of multipath propagation on the RF channel by directly controlling the frequency and notch depth introduced by the channel model or by setting a different fractional delay of the interfering ray. You can configure the notch frequency or configure the notch depth run-time up, with a slew rate of up to 300 MHz/s and 300 dB/s respectively. Additionally, the MFE includes additional impairments including flat fading, noise, narrowband interference.
+ Read More

Downloads

The operating systems that are natively compatible with this product.

Indicates the specific revision of the product. Most products use year-based versioning.

Included Editions

Indicates the software editions that are included in the download option.

Indicates whether the download includes 32- or 64-bit software. This value does not refer to your OS.

Language used in the software user interface.

Disclaimer: The Third-Party Add-Ons for LabVIEW on this page are offered by independent third-party providers who are solely responsible for these products. NI has no responsibility whatsoever for the performance, product descriptions, specifications, referenced content, or any and all claims or representations of these third-party providers. NI makes no warranty whatsoever, neither express nor implied with respect to the goods, the referenced contents, or any and all claims or representations of the third-party providers.
