PXIe-4480/4481 Adjustment Procedure Overview
Overview
As an addendum to the PXIe-4480/4481 Calibration Procedure, this document provides programming block diagrams that give an overview of the PXIe-4480 and PXIe-4481 performance adjustment procedures.
The following block diagrams provide an overview of the performance adjustment procedures for the PXIe-4480 and the PXIe-4481. You can adjust these modules using either of two methods:
- "Minimum Time Method" adjusts the voltage gain of all channels in parallel.
- "Minimum Cabling Method" adjusts the voltage gain of each channel separately.
Performance is not affected by the choice; the trade-off is simply between adjustment time and cabling complexity.
For detailed adjustment procedures, refer to the PXIe-4480/4481 Calibration Procedure on ni.com.
PXIe-4480 Adjustment, Minimum Time Method:
PXIe-4480 Adjustment, Minimum Cabling Method:
PXIe-4481 Adjustment, Minimum Time Method:

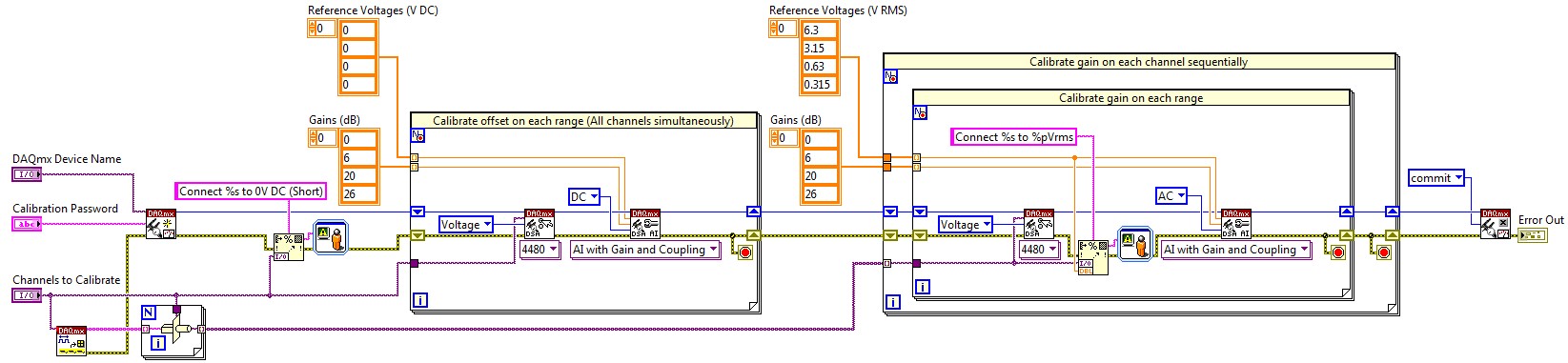

PXIe-44810 Adjustment, Minimum Cabling Method:
