VB-8034 Specifications

Definitions

Warranted specifications describe the performance of a model under stated operating conditions and are covered by the model warranty.

Characteristics describe values that are relevant to the use of the model under stated operating conditions but are not covered by the model warranty.

Typical specifications describe the performance met by a majority of models.
Nominal specifications describe an attribute that is based on design, conformance testing, or supplemental testing.

Specifications are Typical unless otherwise noted.

Conditions

Typical specifications are valid under the following conditions unless otherwise noted:

25 °C
30-minute warm-up time before operation

Warranted specifications are valid at T_cal±5 °C. Temperature coefficients are calculated using the temperature change from last external calibration.

Mixed Signal Oscilloscope

Analog Channels

Vertical System

Number of channels	4 single-ended, non-isolated
Bandwidth (-3 dB)^[1]¹ Bandwidth using 50 Ω mode or 1 MΩ mode with the accessory oscilloscope probe.	350 MHz
Resolution	8 bits
Accuracy (warranted)	±2% of input ±1% full scale (V peak-to-peak)
Input coupling	DC, AC
Vertical sensitivity (range)	5 mV/div (40 mV peak-to-peak) 10 mV/div (100 mV peak-to-peak) 20 mV/div (200 mV peak-to-peak) 50 mV/div (400 mV peak-to-peak) 100 mV/div (1 V peak-to-peak) 200 mV/div (2 V peak-to-peak) 500 mV/div (4 V peak-to-peak) 1 V/div (10 V peak-to-peak) 2 V/div (20 V peak-to-peak) 5 V/div (40 V peak-to-peak)
Input impedance (user selectable)	1 MΩ \|\| 15 pF or 50 Ω^[2]² Maximum voltage when using 50 Ω input mode is 5 V RMS. For a periodic waveform with frequency below 100 kHz, the maximum voltage is derated to 2.5 V RMS.

Table 1. DC Offset Range
Range	Programmable Offset Range
5 mV/div, 10 mV/div, 20 mV/div, 50 mV/div	±5 V
100 mV/div, 200 mV/div, 500 mV/div, 1 V/div, 2 V/div, 5 V/div	±20 V

Acquisition modes

Sample, peak detect, averaging

Horizontal System

Maximum sample rate	1.5 GS/s/channel
Maximum record length	1 MS/channel

Digital Channels/Logic Analyzer

Vertical System

Number of channels	34
Maximum input frequency	100 MHz
Input voltage	0 V to 5 V
Input current	≤50 μA

Note Mixed signal oscilloscope digital channels are designed to withstand accidental overvoltage from signals on the VB-8034 or similar devices. They are not recommended for use with signals likely to exceed 0 V to 5 V in normal operation.

Input threshold	Programmable, 0 V to 2.0 V
Threshold accuracy	350 mV
Input impedance	100 kΩ \|\| 7.5 pF (nominal) pulled to -2.0 V to +6.5 V, varies with the input threshold setting
Additional/internal channels	Digital I/O lines, function generator start, external trigger (TRIG), power line frequency

Horizontal System

Timing mode sample rate (warranted)

1 GS/s (down to ~15 kS/s)

Maximum external sample clock rate

100 MHz

Record length
Typical	1 MS
Minimum^[3]³ Under most conditions, the logic analyzer can acquire 1 MS of data. Under some conditions with very high sustained activity on multiple inputs, the logic analyzer may only capture 4 kS of data.	4 kS

Decimation

External Sample Clock, 1:1, 2:1, and n*4:1 where n is an integer

Maximum sample compression

2¹⁵ to 1

Triggering

Trigger modes

Normal, Auto, Force, Single^[4]⁴ Single trigger mode is only available in the VirtualBench application. For feature differences between the VirtualBench application for Windows and iPad, go to ni.com/info and enter vbfeatures.

Trigger sources

Oscilloscope analog channels, oscilloscope digital channels, function generator start, digital I/O lines, external trigger (TRIG), power line frequency

Trigger types
Analog	Edge with hysteresis, pulse width
Digital	Edge, pulse width, pattern, glitch^[5]⁵ Glitch triggers are only available with the NI VirtualBench driver.

Trigger resolution
Analog/oscilloscope	667 ps
Digital/logic analyzer	1 ns
Trigger export	Available through external trigger (TRIG)

Waveform Measurements

Oscilloscope time⁶ Waveform measurements are only available in the VirtualBench application.^[6]	Period, frequency, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width, rise time, fall time, rise rate, fall rate
Oscilloscope voltage^[6]	High, low, amplitude, maximum, minimum, peak-to-peak, overshoot, undershoot, RMS, mean, cycle RMS, cycle mean
Logic analyzer time^[6]	Period, frequency, positive duty cycle, negative duty cycle, positive pulse width, negative pulse width

Waveform Math

Operations^[7]⁷ Waveform math is only available in the VirtualBench application.

A + B, A - B, A * B, A/B, FFT

Function Generator (FGEN)

Waveforms

Sine, square, ramp/triangle, DC, arbitrary

Update rate

125 MS/s

Resolution

14 bits

Number of channels

1

Output impedance

50 Ω

Switchable filter^[8]⁸ Switchable filters are only available with the NI VirtualBench driver. The VirtualBench application automatically enables the lowpass filter in sine mode.

36 MHz lowpass, 7-pole, elliptical

Sine

Maximum frequency

20 MHz

Total Harmonic Distortion (THD)
1 MHz	-55 dBc
10 MHz	-50 dBc

Spurious Free Dynamic Range (SFDR)

-70 dB at 1 MHz (non-harmonic)

Phase noise (1 MHz)

-125 dBc/Hz at 10 kHz offset

Square
Maximum frequency	5 MHz
Rise/fall time	<20 ns (10% to 90%)
Overshoot	<5%
Jitter	8 ns cycle-to-cycle

Ramp/triangle maximum frequency

1 MHz

Accuracy (with >10 kΩ load)
Amplitude (1 kHz sine)	±(1% of output value ± 5 mV)
DC	±(1% of output value ± 5 mV)

Output range
50 Ω	±6 V
Hi-Z (>10 kΩ)	±12 V

DC offset
50 Ω	±6 V
Hi-Z (>10 kΩ)	±12 V

Note The combination of signal amplitude and DC offset cannot exceed the output range specifications. The impedances listed are the loads applied by the user to the FGEN output.

Frequency
Accuracy	≤100 ppm
Resolution	1 μHz

Arbitrary waveform
Points	1 MS
Sample rate	125 MS/s

Flatness

±0.3 dB to 20 MHz

Protection

Short-circuit protected

Triggering

Trigger types	Start of buffer^[9]⁹ The function generator can only produce a trigger.
Trigger resolution	8 ns
Trigger export	Available through external trigger (TRIG)

Digital I/O

Number of channels	8
Direction control	Input or output, software-selectable
Logic level	5 V compatible TTL input, 3.3 V LVTTL output
Drive strength	4 mA
Input voltage	0 V to 5 V

Note Digital I/O lines are designed to withstand accidental overvoltage from signals on the VB-8034 or similar devices. They are not recommended for use with signals likely to exceed 0 V to 5 V in normal operation.

DIO channel pull resistors
dig/<0..5>	10 kΩ, pull-down to 0 V
dig/<6,7>	10 kΩ, pull-down to 0 V (default) or 1.5 kΩ, configurable pull-up to 3.3 V

External Power

3.3 V output
Voltage	3.3 V ±10%
Current	20 mA

Digital Multimeter

Functions	DC voltage, AC voltage, DC current, AC current, resistance, diode, continuity^[10]¹⁰ Continuity is only available in the VirtualBench application.
Resolution	5½ digits
Sample rate	5 S/s

Caution Do not use this device for connection to signals or for measurements within Measurement Categories III or IV. For more information about Measurement Categories, refer to the Safety Voltages section.

Input protection

Resistance, diode

Up to 300 V DC

DC and AC voltage

Up to 300 V DC or 265 V AC RMS, 400 V AC peak

DC and AC current
DMM A current connector fuse	Internal ceramic fuse, 11 A, 1 kV AC, 10.3 × 38 mm,F 11A 1000V (SIBA part number 5019906.11 at www.siba-fuses.com)
DMM mA current connector fuse	Internal ceramic fuse, 1 A, 500 V AC, 5 × 20 mm,T 1A H 400V (Littelfuse part number 0477001.MXP at www.littelfuse.com)

Warning Fuses are located on the bottom of the device underneath the door. Use Phillips #1 screwdriver for removal. Ensure all hazardous voltages are disconnected from the device prior to removal of door. When the fuse symbol is marked on a device, take proper precautions.

Maximum common-mode voltage

300 V DC or AC RMS

DC

Table 2. DC Voltage Accuracy
Range	Input Impedance	1-Year Accuracy ± (% of Reading + % of Range) (warranted)	Temperature Coefficient ± (% of Reading + % of Range)/°C (warranted)
100 mV^*	>10 GΩ, 10 MΩ	0.015 + 0.005	0.001 + 0.0005
1 V	>10 GΩ, 10 MΩ	0.015 + 0.005	0.001 + 0.0005
10 V	>10 GΩ, 10 MΩ	0.015 + 0.005	0.001 + 0.0005
100 V	10 MΩ	0.035 + 0.005	0.005 + 0.0005
300 V	10 MΩ	0.035 + 0.005	0.005 + 0.0005
* Add 15 µV if not immediately following offset null.

Table 3. DC Current Accuracy
Range	Burden Voltage	1-Year Accuracy ± (% of Reading + % of Range) (warranted)	Temperature Coefficient ± (% of Reading + % of Range)/°C (warranted)
10 mA	<0.03 V	0.070 + 0.020	0.0035 + 0.0010
100 mA	<0.3 V	0.070 + 0.003	0.0020 + 0.0010
1 A	<0.03 V	0.130 + 0.025	0.0065 + 0.0010
10 A^*	<0.3 V	0.130 + 0.004	0.0045 + 0.0010
* 30 seconds on, 30 seconds off. Add 300 ppm/A for currents >2.2 A. After measuring >5 A, wait two minutes to get full accuracy in the 1 A range.

Table 4. DC Resistance Accuracy (2-Wire)^*, 1 V Open Circuit Voltage
Range	Short-Circuit Current	1-Year Accuracy ± (% of Reading + % of Range) (warranted)	Temperature Coefficient ± (% of Reading + % of Range)/°C (warranted)
100 Ω	170 μA	0.018 + 0.050	0.0010 + 0.0005
1 kΩ	170 μA	0.018 + 0.005	0.0010 + 0.0005
10 kΩ	70 μA	0.018 + 0.005	0.0010 + 0.0005
100 kΩ	10 μA	0.018 + 0.005	0.0010 + 0.0005
1 MΩ	1.1 μA	0.035 + 0.005	0.0040 + 0.0005
10 MΩ	1.1 μA	0.150 + 0.005	0.0100 + 0.0005
100 MΩ	1.1 μA	1.3 + 0.005	0.1000 + 0.0005
* Perform offset nulling.

Caution The input terminals of the DMM are not protected for electromagnetic interference. As a result, the DMM may experience reduced measurement accuracy or other temporary performance degradation when connected to unshielded test leads in an environment with radiated or conducted radio frequency electromagnetic interference.

DC continuity accuracy range^[11]¹¹ DC continuity is only available in the VirtualBench application.	100 Ω
DC diode test range	2 V
Effective Common-Mode Rejection Ratio (CMRR), 1 kΩ resistance in LO lead	>100 dB
Normal-Mode Rejection Ratio (NMRR), 50/60 Hz ±0.1%	>100 dB
Overrange	105% of range except 300 V

AC

Table 5. AC Voltage Accuracy
Range (rms)	Peak Voltage	Frequency	1-Year Accuracy ± (% of Reading + % of Range) (warranted)	Temperature Coefficient ± (% of Reading + % of Range)/°C (warranted)
100 mV, 1 V, 10 V, 100 V, 265 V	±210 mV, ±2.1 V, ±21 V, ±210 V, ±400 V	20 Hz to 45 Hz	0.91 + 0.10	0.01 + 0.005
		45 Hz to 65 Hz	0.30 + 0.05	0.01 + 0.005
		65 Hz to 1 kHz	0.21 + 0.05	0.01 + 0.005
		1 kHz to 5 kHz	0.12 + 0.05	0.01 + 0.005
		5 kHz to 20 kHz	0.35 + 0.05	0.01 + 0.005

Table 6. AC Current Accuracy
Range (rms)	Peak Current	Burden Voltage (rms)	Frequency	1-Year Accuracy ± (% of Reading + % of Range) (warranted)	Temperature Coefficient ± (% of Reading + % of Range)/°C (warranted)
5 mA	±10.5 mA	<0.02 V	20 Hz to 1 kHz	0.20 + 0.01	0.01 + 0.005
5 mA	±10.5 mA	<0.02 V	1 kHz to 5 kHz	0.60 + 0.01	0.01 + 0.005
50 mA	±105 mA	<0.2 V	20 Hz to 1 kHz	0.20 + 0.01	0.01 + 0.005
50 mA	±105 mA	<0.2 V	1 kHz to 5 kHz	0.50 + 0.01	0.01 + 0.005
500 mA	±1.05 A	<0.02 V	20 Hz to 1 kHz	0.15 + 0.01	0.01 + 0.005
500 mA	±1.05 A	<0.02 V	1 kHz to 5 kHz	0.50 + 0.01	0.01 + 0.005
5 A	±10.5 A	<0.2 V	20 Hz to 1 kHz	0.25 + 0.03	0.01 + 0.005
5 A	±10.5 A	<0.2 V	1 kHz to 5 kHz	0.60 + 0.03	0.01 + 0.005

Caution The input terminals of the DMM are not protected for electromagnetic interference. As a result, the DMM may experience reduced measurement accuracy or other temporary performance degradation when connected to unshielded test leads in an environment with radiated or conducted radio frequency electromagnetic interference.

Input impedance	10 MΩ \|\| 200 pF
CMRR, 1 kΩ resistance in LO lead	>70 dB (DC to 60 Hz)

DC Power Supply

Outputs

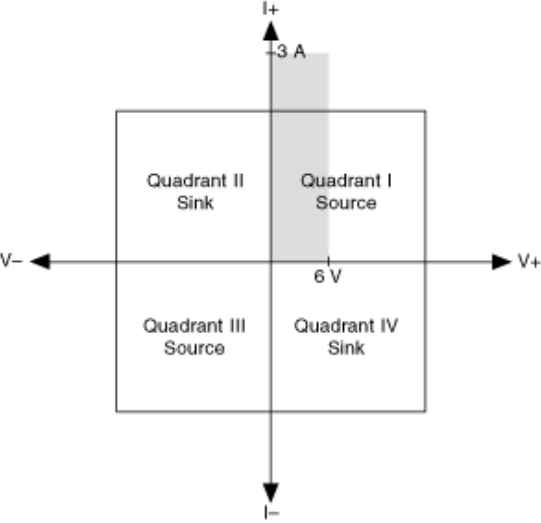

0 V to +6 V/0 A to 3 A,

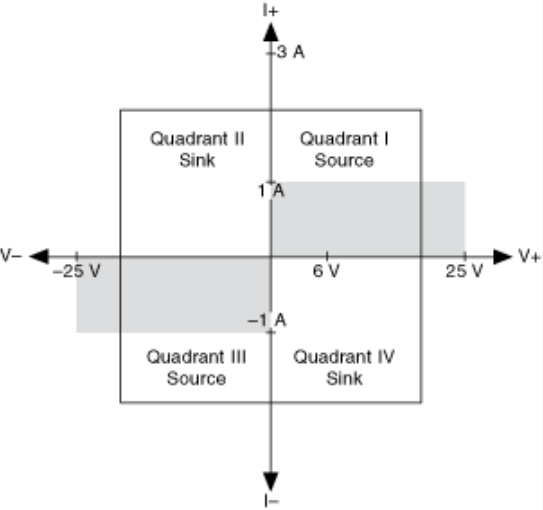

0 V to +25 V/0 A to 1 A (isolated),

0 V to -25 V/0 A to 1 A (isolated)

Note The +25 V and -25 V channels are bank isolated from ground but not from each other.

Table 7. DC Accuracy/Resolution
Output	Type	+6 V	+25 V	-25 V
DC output (warranted)	Voltage	0 V to +6 V	0 V to +25 V	0 V to -25 V
DC output (warranted)	Current¹² Minimum programmable current limit is 1% of range.^[12]	3 A	1 A	1 A
Programming accuracy^[12]± (% of reading + offset) (warranted)	Voltage	0.1% + 5 mV	0.1% + 20 mV	0.1% + 20 mV
	Current	0.2% + 10 mA	0.15% + 4 mA	0.15% + 4 mA
Readback accuracy^[13]¹³ Programming and readback accuracy specified at no load.± (% of reading + offset) (warranted)	Voltage	0.1% + 5 mV	0.1% + 20 mV	0.1% + 20 mV
	Current	0.2% + 10 mA	0.15% + 4 mA	0.15% + 4 mA
Programming resolution	Voltage	1.6 mV	6.6 mV	6.6 mV
Programming resolution	Current	0.90 mA	0.30 mA	0.30 mA
Readback resolution	Voltage	0.40 mV	1.7 mV	1.7 mV
Readback resolution	Current	210 µA	70 µA	70 µA
Load regulation^[14]¹⁴ Change in output voltage for any load within range.± (% of reading + offset)	Voltage	0.01% + 25 mV	0.03% + 5 mV	0.03% + 5 mV

Overvoltage protection	30 V (all channels)
Reverse voltage protection	Reverse clamp diode, protected by self-resetting fuse

External Trigger (TRIG)

Direction control	Input or output, software-selectable
Logic level	5 V compatible TTL input, 3.3 V LVTTL output
Drive strength	4 mA
Input voltage	0 V to 5 V

Note The external trigger line is designed to withstand accidental overvoltage from signals on the VB-8034 or similar devices. It is not recommended for use with signals likely to exceed 0 V to 5 V in normal operation.

Connectivity

Wired USB Interface

USB specification

USB 2.0 Hi-Speed

Wired Ethernet Interface

Network interface	1000 Base-TX, full-duplex; 100 Base-TX, full-duplex; 100 Base-TX, half-duplex; 10 Base-T, full-duplex; 10 Base-T, half-duplex
Communication rates	10/100/1000 Mbps, auto-negotiated
Maximum cabling distance	100 m/segment
Network IP configuration	IPv4, DHCP Client

Table 8. Network Protocols and Ports Used
Port	Protocol	Function
Port 80/TCP	HTTP	Device configuration (web, MAX)
Port 443/TCP	HTTP	Device configuration (web, MAX)
Port 3580/TCP	Service locator	Device configuration (web, MAX)
Port 9090/TCP	Configuration only	VirtualBench instrument protocol
Port 5353/UDP	Multicast DNS	Device discovery

Wireless Interface

Table 9. Network Protocols and Ports Used
Port	Protocol	Function
Port 80/TCP	HTTP	Device configuration (web, MAX)
Port 443/TCP	HTTP	Device configuration (web, MAX)
Port 3580/TCP	Service locator	Device configuration (web, MAX)
Port 9090/TCP	Configuration only	VirtualBench instrument protocol
Port 5353/UDP	Multicast DNS	Device discovery

Network IP configuration	IPv4, DHCP Client/Server
Radio mode	IEEE 802.11 b,g,n
Wireless modes	AP mode (default), client mode
Frequency band	2.4 GHz ISM
Channel width	20 MHz
Channels	USA 1-11, International 1-13 (12 and 13 client mode only)
TX power	+10 dBm maximum (10 mW)
Security	Open, WPA, WPA2, WPA2-Enterprise
Enterprise security EAP types	EAP-TLS, EAP-TTLS/MS-CHAPv2, PEAPv0/MS-CHAPv2
Antenna	External RP-SMA omnidirectional dipole

Software Compatibility

For information about operating system support for Windows and iPad, go to ni.com/info and enter vbfeatures.

Power Requirements

Caution The protection provided by the VirtualBench hardware can be impaired if it is used in a manner not described in the NI VB-8034 Safety, Environmental, and Regulatory Information document .

Voltage input range	100 V AC to 240 V AC, 50/60 Hz
Power consumption	150 W maximum
Power input connector	IEC C13 power connector
Power disconnect	The AC power cable provides main power disconnect. Do not position the equipment so that it is difficult to disconnect the power cable. Depressing the front panel power button does not inhibit the internal power supply.

Calibration

Calibration cycle (digital multimeter, mixed signal oscilloscope, function generator, DC power supply)	1 year
Specified temperature	T_cal ± 5 °C
Warmup time	30 minutes

VB-8034 Front Panel, Back Panel, and Pinouts

VB-8034 Front Panel

Table 10. VB-8034 Front Panel Descriptions
Item	Description
1	Power Button and Power LED
2	Digital I/O
3	Wireless LED
4	DC Power Supply
5	Mixed Signal Oscilloscope (MSO)
6	Digital Multimeter (DMM)
7	Function Generator (FGEN)
8	External Trigger (TRIG)
9	Ethernet and USB Connectivity LEDs

Table 11. Power LED Patterns
Pattern	Description
On	Operating normally
Off	VirtualBench is in standby mode
Blinking	Hardware issue

Table 12. Bi-Color Wireless LED Patterns
Color	Pattern	Description
Orange	On	Wireless access available in AP mode (default startup mode)
Blue	Blinking	Device trying to establish wireless connection in client mode
Blue	On	Wireless connection established in client mode
—	Off	Wireless disabled

Table 13. FGEN LED Patterns
Pattern	Description
On	FGEN is generating a standard or arbitrary waveform
Off	FGEN is off or not generating an output
Blinking	Warning that voltage is being applied/backdriven to the FGEN

Back Panel

Table 14. VB-8034 Back Panel Descriptions
Item	Description
1	Antenna
2	Reset Button
3	USB Port
4	Security Cable Slot
5	Chassis Ground Screw
6	Power Connector
7	Ethernet Port and LEDs

Table 15. Ethernet LED Patterns
LED	Color	Pattern	Description
10/100/1000	Yellow	On	Connected at 1000 Mbps
	Green	On	Connected at 100 Mbps
	—	Off	No Ethernet connection or 10 Mbps connection
LINK/ACT	Green	On	Ethernet link
		Off	No Ethernet connection
		Blinking	Ethernet activity

Mixed Signal Oscilloscope Pinout

Caution Exceeding the maximum input voltage ratings can damage the device and the computer. NI is not liable for any damage resulting from such signal connections.

Table 16. Logic Analyzer Cable Wire List
Pin	Signal	Wire Color	Pin	Signal	Wire Color
1	GND	Black	2	GND	Black
3	D16	Yellow	4	D0	Red
5	D17		6	D1
7	D18		8	D2
9	D19		10	D3
11	D20		12	D4
13	D21		14	D5
15	D22		16	D6
17	D23		18	D7
19	GND	Black	20	GND	Black
21	D24	Green	22	D8	Blue
23	D25		24	D9
25	D26		26	D10
27	D27		28	D11
29	D28		30	D12
31	D29		32	D13
33	D30		34	D14
35	D31		36	D15
37	GND	Black	38	GND	Black
39	CLK1	White	40	CLK0	White

Table 17. Mixed Signal Oscilloscope and Logic Analyzer Signal Descriptions
Pin	Connector	Description
CH <1..4>	Standard BNC connector	Analog input connection; digitizes data and triggers acquisitions
	Probe compensation tab	Probe compensation output; oscilloscope compensation square wave used to tune the probe to minimize over/undershoot
	Probe compensation tab	Probe compensation/oscilloscope ground
D<0..31>	Logic analyzer	Digital input signals 0 to 31, grouped into four ports of eight lines: Port 0 (D0..7) Port 1 (D8..15) Port 2 (D16..23) Port 3 (D24..31)
CLK0		State mode clock 0
CLK1		State mode clock 1
GND		Ground for digital signals

Digital I/O Pinout

Caution Exceeding the maximum input voltage ratings or maximum output ratings can damage the device and the computer. NI is not liable for any damage resulting from such signal connections.

Table 18. Digital I/O Signal Descriptions
Signal Name	Direction	Description
	—	Ground—The reference point for the digital signals and +3.3 V supply at the I/O connector
+3.3 V	Output	+3.3 V Power Source—Provides +3.3 V power output up to 20 mA
dig/<0..7>	Input or Output	Digital I/O Channels 0 to 7, user selectable functions

Caution Never connect the +3.3 V power terminal to analog or digital ground or to any other voltage source on VirtualBench or any other device. Doing so can damage the device and the computer. NI is not liable for damage resulting from such a connection.

DC Power Supply Pinout

Caution Exceeding the maximum output ratings can damage the device and the computer. NI is not liable for any damage resulting from such signal connections.

The DC power supply has six LEDs that correlate to the three available voltages on the connector.

Table 19. DC Power Supply Signal Descriptions
Item	Description
1	+6 V CV and CC LEDs
2	Channel +6 V (0 V to +6 V)
3	GND
4	GND
5	+25 V CV and CC LEDs
6	Channel +25 V (0 V to +25 V)
7	Common floating GND
8	-25 V CV and CC LEDs
9	Channel -25 V (0 V to -25 V)

Note The +25 V and -25 V channels are bank isolated from ground but not from each other.

Table 20. DC Power Supply LED Patterns
LED	Color	Description
+6 CV	Blue	Constant 0 to +6 V voltage
+6 CC	Orange	Constant 0 to 3 A current
+25 CV	Blue	Constant 0 to +25 V voltage
+25 CC	Orange	Constant 0 to 1 A current
-25 CV	Blue	Constant 0 to -25 V voltage
-25 CC	Orange	Constant 0 to 1 A current

Note The color of the LED matches the color of the CV and CC indicators in the VirtualBench application, blue and orange respectively.

VirtualBench has three single-quadrant DC power supply channels. Each channel on the DC power supply can operate only within one quadrant (channels +6V and +25V operate only within Quadrant I, and channel -25V operates only within Quadrant III).

Table 21. DC Power Supply Channel Quadrants
DC Power Supply Channel	Quadrant Operation
+6 V, +3 A
+25 V, +1 A -25 V, -1 A

Digital Multimeter Pinout

Caution Exceeding the maximum input voltage ratings can damage the device and the computer. NI is not liable for any damage resulting from such signal connections.

Table 22. Digital Multimeter Pinout and Connections
Measurement	Wiring Diagram	Range
DC Voltage		100 mV, 1 V, 10 V, 100 V, 300 V
AC Voltage		100 mVrms, 1 Vrms, 10 Vrms, 100 Vrms, 265 Vrms
DC Current ≤100 mA		10 mA, 100 mA
DC Current >100 mA to 10 A		1 A, 10 A
AC Current ≤50 mArms		5 mArms, 50 mArms
AC Current 500 mArms to 5 Arms		500 mArms, 5 Arms
2-Wire Resistance		100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ, 10 MΩ, 100 MΩ
Voltage across a Diode		2 V

Note If the digital multimeter always reads about 0.00 A or 0.00 mA when measuring current, the cause may be a blown fuse.

Physical Characteristics

Dimensions
Enclosure	30.48 cm × 20.32 cm × 9.40 cm (12.0 in. × 8.0 in. × 3.7 in.)
Enclosure with connectors and antenna	30.48 cm × 25.40 cm × 16.00 cm (12.0 in. × 10.0 in. × 6.3 in.)

Note Use the VirtualBench instrument in a horizontal orientation. Allow at least 10.16 cm (4.0 in.) of clearance in front, on the sides, and behind the VirtualBench instrument for airflow clearances, and USB, power, and common connector cabling.

Weight

3.130 kg (6 lb 4.4 oz)

Connectivity

Mixed signal oscilloscope

4, BNC

Logic analyzer

1, 2x20 shrouded IDC header

External trigger

1, BNC

Function generator

1, BNC

Digital I/O
Type	1, pluggable screw terminal, 3.5 mm (14 position)
Screw terminal wiring	0.1 mm² to 2.0 mm² (30 AWG to 14 AWG)
Torque	0.25 N · m (2.2 lb · in.)

Digital multimeter

4, 4 mm banana jacks

DC power supply

6, 4 mm binding posts

Security cable slot

1, complies with Kensington security slot dimensions

If you need to clean the device, wipe it with a dry towel.

Safety Voltages

Connect only voltages that are within these limits.

DMM Isolation Voltages

Hazardous Voltage This icon denotes a warning advising you to take precautions to avoid electrical shock.

Channel-to-earth ground
Continuous	300 V, Measurement Category II
Withstand	3,000 V RMS, verified by a 5 s dielectric withstand test

Measurement Category II is for measurements performed on circuits directly connected to the electrical distribution system. This category refers to local-level electrical distribution, such as that provided by a standard wall outlet, for example, 115 V for U.S. or 230 V for Europe.

Caution Do not connect the VirtualBench hardware to signals or use for measurements within Measurement Categories III or IV.

DC Power Supply Isolation Voltages

+25 V and -25 V-to-earth ground, continuous

60 V DC, Measurement Category I

Note Measurement Categories CAT I and CAT O are equivalent. These test and measurement circuits are for other circuits not intended for direct connection to the MAINS building installations of Measurement Categories CAT II, CAT III, or CAT IV.

Environmental

Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 70 °C
Operating humidity	10% to 90% RH, noncondensing DMM full accuracy at 10% to 80%
Storage humidity	5% to 95% RH, noncondensing
Cooling	Forced air circulation (negative pressurization) through a fan. Fan speed automatically adjusts according to operating conditions. Intake locations are on the sides of device. Exhaust location is on the rear of device. Ensure that the intake and exhaust locations are not obstructed.
Pollution Degree	2
Maximum altitude	2,000 m

Indoor use only.

Shock and Vibration

Operational shock

30 g peak, half-sine, 11 ms pulse

Random vibration
Operating	5 Hz to 500 Hz, 0.3 g_rms
Nonoperating	5 Hz to 500 Hz, 2.4 g_rms

Safety Compliance Standards

This product is designed to meet the requirements of the following electrical equipment safety standards for measurement, control, and laboratory use:

IEC 61010-1, EN 61010-1
UL 61010-1, CSA 61010-1

Note For safety certifications, refer to the product label or the Product Certifications and Declarations section.

Electromagnetic Compatibility

This product meets the requirements of the following EMC standards for electrical equipment for measurement, control, and laboratory use; for radio equipment; and for telecommunication terminal equipment:

EN 61326-1 (IEC 61326-1): Class A emissions; Basic immunity
EN 55011 (CISPR 11): Group 1, Class A emissions
EN 55022 (CISPR 22): Class A emissions
EN 55024 (CISPR 24): Immunity
AS/NZS CISPR 11: Group 1, Class A emissions
AS/NZS CISPR 22: Class A emissions
FCC 47 CFR Part 15B: Class A emissions
ICES-001: Class A emissions

Note In the United States (per FCC 47 CFR), Class A equipment is intended for use in commercial, light-industrial, and heavy-industrial locations. In Europe, Canada, Australia and New Zealand (per CISPR 11) Class A equipment is intended for use only in heavy-industrial locations.

Note Group 1 equipment (per CISPR 11) is any industrial, scientific, or medical equipment that does not intentionally generate radio frequency energy for the treatment of material or inspection/analysis purposes.

Note For EMC declarations and certifications, and additional information, refer to the Online Product Certification section.

CE Compliance

This product meets the essential requirements of applicable European Directives, as follows:

2014/35/EU; Low-Voltage Directive (safety)
2014/30/EU; Electromagnetic Compatibility Directive (EMC)
2014/53/EU; Radio Equipment Directive (RED)

Product Certifications and Declarations

Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance information. To obtain product certifications and the DoC for NI products, visit ni.com/product-certifications, search by model number, and click the appropriate link.

Environmental Management

NI is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial to the environment and to NI customers.

For additional environmental information, refer to the Engineering a Healthy Planet web page at ni.com/environment. This page contains the environmental regulations and directives with which NI complies, as well as other environmental information not included in this document.

EU and UK Customers

Waste Electrical and Electronic Equipment (WEEE)—At the end of the product life cycle, all NI products must be disposed of according to local laws and regulations. For more information about how to recycle NI products in your region, visit ni.com/environment/weee.

电子信息产品污染控制管理办法（中国RoHS）

中国RoHS— NI符合中国电子信息产品中限制使用某些有害物质指令(RoHS)。关于NI中国RoHS合规性信息，请登录 ni.com/environment/rohs_china。(For information about China RoHS compliance, go to ni.com/environment/rohs_china.)
