Converts the specified file to the .tdm or .tdms file format.

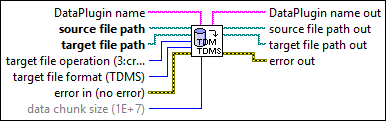

icon

Inputs/Outputs

  • cstr.png DataPlugin name —

    DataPlugin name specifies the name of the DataPlugin that determines the storage format of the data file. Use the List DataPlugins VI to obtain the names of all DataPlugins installed on the local computer. If you do not wire data to this input or if you wire an empty string to this input, this VI automatically detects the storage format of the data file.

  • cpath.png source file path —

    source file path specifies the path to the data file you want to convert.

  • cpath.png target file path —

    target file path specifies the path to the new .tdm or .tdms file you want to create.

  • cenum.png target file operation (3:create) —

    target file operation specifies the operation to perform.

    0
    open
    —Opens a file to configure.
    1
    open or create
    —Opens an existing file or creates a new file to configure.
    2
    create or replace
    —Creates a new file or replaces an existing file.
    3
    create
    (Default)—Creates a new file.
    4
    open (read only)
    —Opens a read-only version of the file.
  • cenum.png target file format (TDMS) —

    target file format specifies the target file format to which you want to convert the data file.

    0
    TDM
    —Converts the data file to a .tdm file.
    1
    TDMS
    (Default)—Converts the data file to a .tdms file.
  • cerrcodeclst.png error in (no error) —

    error in describes error conditions that occur before this node runs. This input provides standard error in functionality.

  • ci64.png data chunk size (1E+7) —

    data chunk size specifies the number of values to read into memory at a time until this VI finishes reading all values. If you have enough system memory, use a higher number than the default value to achieve better performance. The default is 1E+7.

  • istr.png DataPlugin name out —

    DataPlugin name out returns DataPlugin name unchanged. If you do not wire the DataPlugin name input or if you wire an empty string to this input, DataPlugin name out returns the DataPlugin name that this VI detects automatically.

  • ipath.png source file path out —

    source file path out returns source file path unchanged.

  • ipath.png target file path out —

    target file path out returns target file path unchanged.

  • ierrcodeclst.png error out —

    error out contains error information. This output provides standard error out functionality.
