Renders the solution of the partial differential equation. You must manually select the polymorphic instance to use.


icon

Before you use the PDE Rendering VI, use the PDE Solver VI to solve the equation.

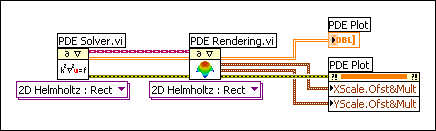

The following block diagram illustrates how to set the scale offset and multiplier of PDE Plot by X Scale and Y Scale.

If you do not set the scale offset and multiplier, LabVIEW uses the default settings of the intensity graph.

Examples

Refer to the following example files included with LabVIEW.

  • labview\examples\Mathematics\Differential Equations - PDE\PDE Flexible Element.vi
  • labview\examples\Mathematics\Differential Equations - PDE\PDE String Vibration.vi
  • labview\examples\Mathematics\Differential Equations - PDE\PDE Thermal Distribution.vi
