SI Nyquist Plot Indicator

Owning Palette: System Identification Indicators

Requires: Advanced Signal Processing Toolkit or Control Design and Simulation Module

Displays the Nyquist plot generated from the SI Nyquist Plot VI.

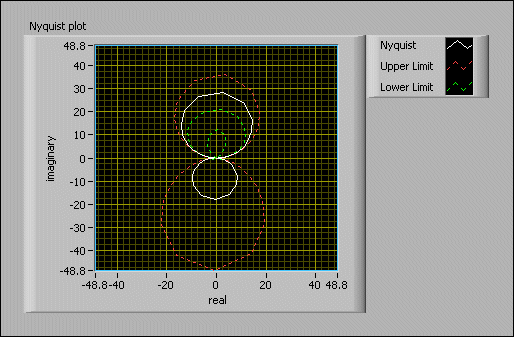

The above figure shows a Nyquist plot with sample data.
