Waveform Generators

Waveform Generators produce large, complex analog waveforms in a sequential manner or using real-time streaming. These instruments are ideal for applications in scientific research and testing of consumer electronics, automotive, and aerospace/defense.

5 Results

    Platform Modules

    Platform modules integrate with modular hardware platforms that allow you to combine different types of modules in a custom system that leverages shared platform features. NI offers three hardware platforms—CompactDAQ, CompactRIO, and PXI—though all platforms may not be represented in this category.

  • Starting from

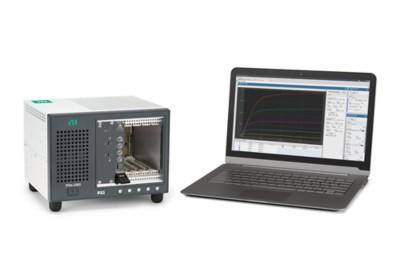

    The PXI Waveform Generator Bundle includes a chassis with a PXI Waveform Generator to help you test electronic equipment.

  • Starting from

    Generates standard functions and user-defined, arbitrary waveforms as part of a PXI system.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI, PXI Express

  • Starting from

    Provides timed pulses of programmable frequency, pulse delay, width, spacing, and amplitude.

    Feature Highlights:

    • Platform: PXI
    • Bus: PXI Express

  • Starting from

    Combines high-speed DACs with Xilinx FPGAs for applications that demand real-time signal processing and high-performance analog input.

    Feature Highlights:

    • Platform: PXI
    • Bus: PCI Express

  • Starting from

    Provides analog output for signal generation with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.

    Feature Highlights:

    • Bus: FlexRIO
