Closed-Loop Systems Model Estimation Methods

Closed-loop model estimation methods use data from a closed-loop system to build a model for a dynamic system that a controller regulates.

Systems in many real-world applications contain feedback. Feedback is a process in which the output signal of a dynamic system is passed, or fed back, to the input to regulate the next output. Systems without feedback are open-loop systems. Systems with feedback are closed-loop systems.

In an open-loop system, the stimulus signal and the output noise do not correlate with each other. In a closed-loop system, the stimulus signal correlates to the output noise. Though you can apply many open-loop model estimation methods to closed-loop data, not all open-loop model estimation methods handle the correlation between the stimulus signal and output noise well.

Feedback in Systems

Feedback is common in control systems. Feedback regulates the system outputs on the basis of a reference input. Feedback also reduces the effect of input disturbances. One example of a closed-loop system is a system that regulates room temperature, as shown in the following figure. In this example, the reference input is the temperature Tset at which you want the room to stay. The thermostat senses the actual temperature, Tactual, of the room. Based on the difference between Tactual and Tset, the thermostat activates the heater or the air conditioner. The thermostat returns Tactual as the feedback to compare again with Tset. Then the thermostat uses the difference between Tactual and Tset to regulate the temperature at the next moment.

Figure 196. Closed-Loop System Regulating Room Temperature

You must verify if feedback exists before choosing a model estimation method because not all open-loop model estimation methods work correctly with closed-loop data.

Note You must know whether the data you collect is from an open-loop system or a closed-loop system according to the real-world system configuration. If you do not have such information, you can determine if feedback exists by using the SI Detect Feedback VI or by obtaining the impulse responses of a dynamic system. You can use the Least Squares instances of the SI Estimate Impulse Response VI to estimate the impulse response of a dynamic system.

The following figure shows a comparison of the impulse responses of the dynamic system in a closed-loop system and an open-loop system:

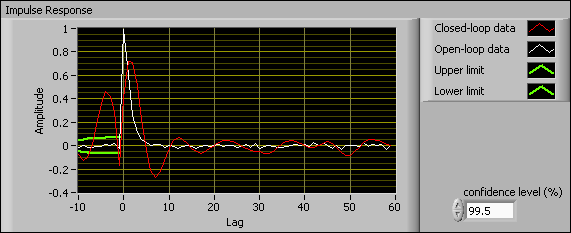

Figure 197. Impulse Response Comparison: Closed-loop vs. Open-loop Systems

The values outside the upper limit and lower limit range at the negative lag, which appears between –10 and 0 on the x-axis, are considered significant values. Significant values in the impulse response at negative lags imply feedback in data. As shown in the following figure, significant values exist in the Closed-loop data plot. Therefore, feedback exists in the closed-loop system. No significant impulse response values exist in the Open-loop data plot. Thus, feedback does not exist in the open-loop system.

Understanding Closed-Loop Model Estimation Methods

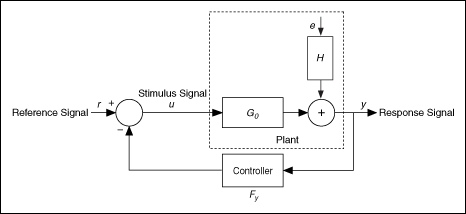

The following figure shows a system that consists of a dynamic system and a controller. In this system, G0 is the dynamic system, Fy is the controller, H is the stochastic part of the dynamic system, u is the stimulus signal, y is the response signal, r is the reference signal that is an external signal, and e is the output noise. In control engineering, this system is known as a feedback-path closed-loop system, which is a typical closed-loop system.

Figure 198. Example Feedback-path Closed-loop System

In some cases, the controller comes before the dynamic system in a closed-loop system. This system is known as a feedforward-path closed-loop system, as shown in the following figure:

Figure 199. Example Feedforward-path Closed-loop System

Depending on the amount of prior knowledge you have about the feedback, the controller, and the reference signal of a system, you can categorize closed-loop model estimation approaches into the following three groups:

  • Direct identification—Uses the stimulus and response signals to identify the dynamic system model as if the dynamic system is in an open-loop system. You can apply the direct identification approach to compute all types of models except state-space models.
  • Indirect identification—Identifies a closed-loop system by using the reference signal and the response signal and then determines the dynamic system model based on the known controller of the closed-loop system. You can apply the indirect identification approach to compute transfer function models.
  • Joint input-output identification—Considers the stimulus signal and the response signal as outputs of a cascaded system. The reference signal and the noise jointly perturb the system, and the dynamic system model is identified from this joint input-output system. You can apply the joint input-output identification approach to compute transfer function models.

    • You can choose a suitable model identification approach according to the information you have about the closed-loop system. The following table summarizes the information you must have to use each identification approach:

    Table 5. Information Needed for each Closed-loop Model Estimation Method
    Method Stimulus Signal Response Signal Reference Signal Controller Information
    Direct Yes Yes — —
    Indirect — Yes Yes Yes
    Joint Input-Output Yes Yes Yes —

    With the System Identification VIs, you can choose to use the direct, indirect, or joint input-output identification approaches for different types of closed-loop systems. The direct identification approach supports Single-Input Single-Output (SISO), Multiple-Input Single-Output (MISO), and Multiple-Input Multiple-Output (MIMO) systems. The indirect and joint input-output identification approaches support SISO systems only.
