FlexRay ECU Properties

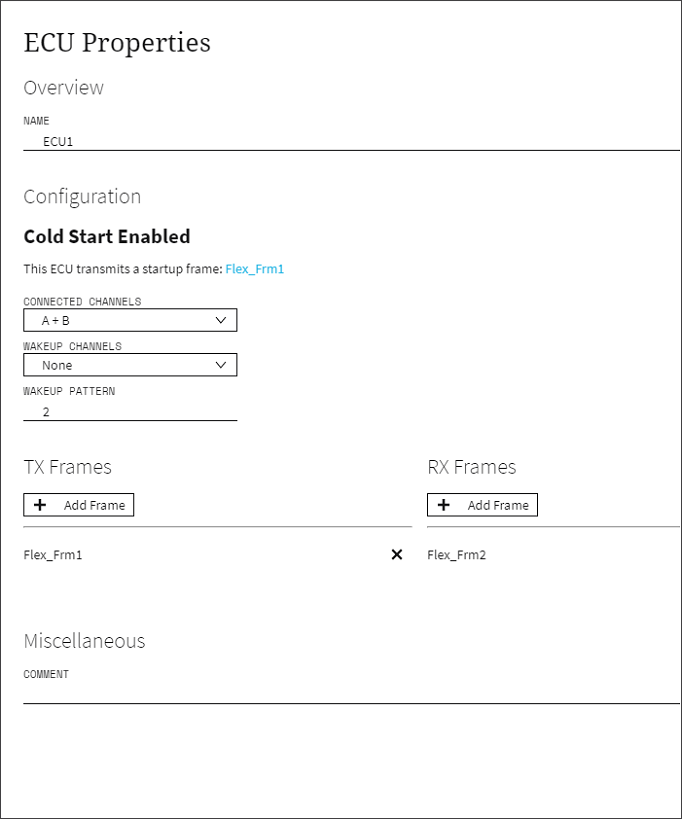

The following properties are available on the ECU Properties page if the database cluster is configured to use the FlexRay protocol.

Name—ECU name. This must be unique within the cluster.

Cold Start—Indicates whether the ECU transmits a startup frame.

Connected Channels— Indicates to which of the two FlexRay Channels (A, B, A+B, or None) the ECU is connected.

Wakeup Channels—Indicates on which of the two FlexRay Channels (A, B, A+B, or None) the ECU is allowed to transmit a wakeup pattern.

Wakeup Pattern—Number that indicates how many wakeup symbols the ECU transmits when transmitting a wakeup pattern. This value should be the same for all ECUs designated as wakeup nodes.

TX Frames—List of transmitted frames.

RX Frames—List of frames received.

Comment—Note or descriptive text related to this ECU. The comment is used for information only.
