Fetches the average power of the 802.11ax specific preamble fields.

Use "segment<n>/chain<k>" as the selector string to read results from this VI.

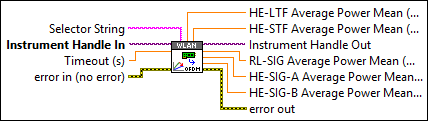

icon

Inputs/Outputs

  • cstr.png Selector String —

    Selector String specifies a selector string comprising of the signal name, result name, segment number, and chain number. If you do not specify the signal name, the default signal instance is used. If you do not specify the result name, the default result instance is used. The default value is "segment0/chain0".

    Example:

    "segment0/chain0"

    "signal::sig1/segment0/chain0"

    "signal::sig1/result::r1/segment0/chain0"

    "result::r1/segment0/chain0"

    You can use the RFmxWLAN Build Chain String VI to build the selector string.

  • cgenclassrntag.png Instrument Handle In —

    Instrument Handle In specifies the RFmx session refnum. Instrument Handle In is obtained from the RFmxInstr Initialize NIRFSA VI or the RFmxInstr Initialize NIRFSA (Array) VI.

  • cdbl.png Timeout (s) —

    Timeout specifies the timeout for fetching the specified measurement. Set this value to an appropriate time, longer than expected for fetching the measurement. A value of -1 specifies that the VI waits until the measurement is complete. This value is expressed in seconds. The default value is 10.

  • cerrcodeclst.png error in (no error) —

    error in describes error conditions that occur before this node runs. This input provides standard error in functionality.

  • idbl.png HE-LTF Average Power Mean (dBm) —

    HE-LTF Average Power Mean returns the average power of the HE-LTF field. When you set the OFDMModAcc Averaging Enabled property to True, this parameter returns the mean of the HE-LTF average power results computed for each averaging count. This value is expressed in dBm.

  • idbl.png HE-STF Average Power Mean (dBm) —

    HE-STF Average Power Mean returns the average power of the HE-STF field. When you set the OFDMModAcc Averaging Enabled property to True, this parameter returns the mean of the HE-STF average power results computed for each averaging count. This value is expressed in dBm.

  • igenclassrntag.png Instrument Handle Out —

    Instrument Handle Out passes a reference of your RFmx session to the next VI.

  • idbl.png RL-SIG Average Power Mean (dBm) —

    RL-SIG Average Power Mean returns the average power of the RL-SIG field. When you set the OFDMModAcc Averaging Enabled property to True, this parameter returns the mean of the RL-SIG field average power results computed for each averaging count. This value is expressed in dBm.

  • idbl.png HE-SIG-A Average Power Mean (dBm) —

    HE-SIG-A Average Power Mean returns the average power of the HE-SIG-A field. When you set the OFDMModAcc Averaging Enabled property to True, this parameter returns the mean of the HE-SIG-A field average power results computed for each averaging count. This value is expressed in dBm.

  • idbl.png HE-SIG-B Average Power Mean (dBm) —

    HE-SIG-B Average Power Mean returns the average power of the HE-SIG-B field. When you set the OFDMModAcc Averaging Enabled property to True, this parameter returns the mean of the HE-SIG-B field average power results computed for each averaging count. This value is expressed in dBm.

  • ierrcodeclst.png error out —

    error out contains error information. This output provides standard error out functionality.
