RFmxSpecAn SEM Fetch Lower Offset Margin (Array) VI

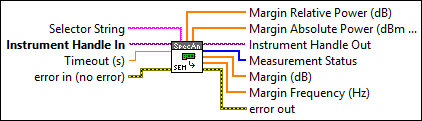

Selector String specifies a selector string comprising of the signal name and result name. If you do not specify the signal name, the default signal instance is used. If you do not specify the result name, the default result instance is used. The default value is "" (empty string).

Example:

""

"signal::sig1"

"result::r1"

"signal::sig1/result::r1"

You can use the RFmxSpecAn Build Signal String VI to build the selector string.

Instrument Handle In specifies the RFmx session refnum. Instrument Handle In is obtained from the RFmxInstr Initialize NIRFSA VI.

Timeout specifies the timeout, in seconds, for fetching the specified measurement. Set this value to an appropriate time, longer than expected for fetching the measurement. A value of -1 specifies that the VI waits until the measurement is complete. The default value is 10.

error in describes error conditions that occur before this node runs. This input provides standard error in functionality.

Margin Relative Power returns the array of powers, in dB, at which the margin occurred in each lower (negative) offset segment relative to the integrated or peak power of the reference carrier.

Margin Absolute Power returns the array of powers, in dBm or dBm/Hz, at which the margin occurred in the lower (negative) offset segment. The power is measured in dBm when you set the SEM Power Units property to dBm, and in dBm/Hz when you set the SEM Power Units property to dBm/Hz.

Instrument Handle Out passes a reference of your RFmx session to the next VI.

Measurement Status returns the array of lower offset measurement statuses based on measurement limits and the fail criteria that you specify in the SEM Offset Seg Limit Fail Mask property.

Fail (0)	Indicates that the measurement has failed.
Pass (1)	Indicates that the measurement has passed.

Margin returns the array of margins, in dB, from the limit mask value that you set in the SEM Offset Seg Limit Fail Mask property. Margin is defined as the maximum difference between the spectrum and the limit mask.

When you set the SEM Offset Seg Limit Fail Mask property to Absolute, the margin is with reference to the absolute limit mask.

When you set the SEM Offset Seg Limit Fail Mask property to Relative, the margin is with reference to the relative limit mask.

When you set the SEM Offset Seg Limit Fail Mask property to Abs AND Rel, the margin is the maximum of the margins referenced to the absolute and relative limit masks.

When you set the SEM Offset Seg Limit Fail Mask property to Abs OR Rel, the margin is the minimum of the margins referenced to the absolute and relative limit masks.

Margin Frequency returns the array of frequencies, in Hz, at which the margin occurred in each lower (negative) offset segment.

error out contains error information. This output provides standard error out functionality.
