Sets scaling parameters for a user-defined scale.

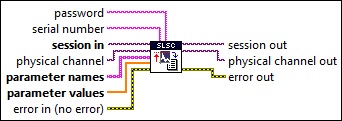

icon

Inputs/Outputs

  • cstr.png password —

    password specifies the password of the NVMEM area. Do not specify this input if the NVMEM area is not protected.

  • cstr.png serial number —

    serial number specifies the serial number of the hardware. Do not specify this input if the NVMEM area is not protected.

  • cgenclassrntag.png session in —

    session in specifies the session to access.

  • cgenclassrntag.png physical channel —

    physical channel specifies the physical channel that contains the scaling equation.

  • c1dstr.png parameter names —

    parameter names specifies the names of the scaling parameters. parameter names is case-insensitive. Do not use reserved names for parameter names. Reserved names include equation, name, description-en, coercion, forwardCoeffs, reverseCoeffs, b, m, table, and "".

  • c1ddbl.png parameter values —

    parameter values specifies the values of the scaling parameters.

  • cerrcodeclst.png error in (no error) —

    error in (no error) describes error conditions that occur before this node runs. This input provides standard error in functionality.

  • igenclassrntag.png session out —

    session out is a copy of the session in reference.

  • igenclassrntag.png physical channel out —

    physical channel out returns the physical channel that contains the scaling equation.

  • ierrcodeclst.png error out —

    error out contains error information. This output provides standard error out functionality.
