XNET Database Merge (Cluster)
Merges all objects of the source cluster into the target cluster.
.gvi.png?_LANG=enus)

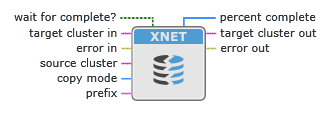

Inputs/Outputs
wait for complete?
An input used to split the merging process into parts (for example, to display a progress bar).
target cluster in
The I/O name of the cluster where the source cluster is merged.
source cluster
The I/O name of the cluster to be merged into the target cluster.
copy mode
An input that defines the merging behavior if the target cluster already contains elements with the same name.
prefix
An input added to the source cluster name if an element with the same name exists in the target cluster.
error in
Error conditions that occur before this node runs.
The node responds to this input according to standard error behavior.
Default value: No error
percent complete
An output used when wait for complete? is false.
target cluster out
A copy of target cluster in. You can use this output to wire the node to subsequent nodes.
error out
Error information.
The node produces this output according to standard error behavior.
Description
This node merges all objects contained in the source cluster into the target cluster.
The following nodes merge the objects with dependent-child objects:
- XNET Database Merge (Frame)
- XNET Database Merge (PDU)
- XNET Database Merge (ECU)
- XNET Database Merge (LIN Schedule)
Copy mode and prefix are passed to the appropriate node for the merging process.
If the copy mode is set to Copy using source or Merge using source, all cluster properties including the name are copied from the source to the target cluster.
Depending on the number of contained objects in the source and destination clusters, the execution can take longer. If wait for complete? is true, this node waits until the merging process gets completed. If the execution completes without errors, percent complete returns 100. If wait for complete? is false, the function returns quickly and percent complete returns values less than 100. You must call XNET Database Merge repeatedly until percent complete returns 100. You can use the time between calls to update a progress bar.
