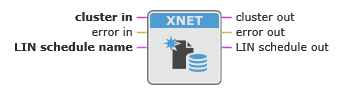

Schedule

Creates a new XNET LIN schedule.

1378

Inputs/Outputs

datatype_icon

cluster in

The cluster parent object.

datatype_icon

LIN schedule name

The name of the schedule to create.

The name must be unique for all schedules in a cluster. Lowercase letters, uppercase letters, numbers, and the underscore (_) are valid characters for the name. The space ( ), period (.), and other special characters are not supported within the name. The name must begin with a letter (uppercase or lowercase) or underscore, and not a number. The name is limited to 128 characters.
datatype_icon

error in

Error conditions that occur before this node runs.

The node responds to this input according to standard error behavior.

Standard Error Behavior

Default value: No error

datatype_icon

cluster out

A copy of the cluster in parameter. You can use this output to wire the node to subsequent nodes.

datatype_icon

LIN schedule out

The I/O name of the newly created LIN schedule object.

datatype_icon

error out

Error information.

The node produces this output according to standard error behavior.

Standard Error Behavior

Description

This node creates an XNET LIN schedule object. It is an instance of XNET Database Create Object.

The LIN schedule name input becomes the Name (Short) property of the created object. This is distinct from the string contained within LIN schedule out, which uses the syntax described in XNET LIN Schedule I/O Name.

The schedule object is created and remains in memory until the database is closed. This node does not change the open database file on disk. To save the newly created object to the file, use XNET Database Save.
