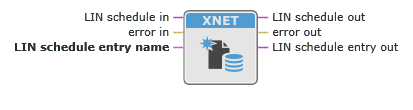

Schedule Entry

Creates a new XNET LIN schedule entry object.

1378

Inputs/Outputs

datatype_icon

LIN schedule in

The schedule parent object.

datatype_icon

LIN schedule entry name

The name of the schedule entry to create.

The name must be unique for all entries in a schedule. Lowercase letters, uppercase letters, numbers, and the underscore (_) are valid characters for the name. The space ( ), period (.), and other special characters are not supported within the name. The name must begin with a letter (uppercase or lowercase) or underscore, and not a number. The name is limited to 128 characters.
datatype_icon

error in

Error conditions that occur before this node runs.

The node responds to this input according to standard error behavior.

Standard Error Behavior

Default value: No error

datatype_icon

LIN schedule out

A copy of the LIN schedule in parameter. You can use this parameter to wire the node to subsequent nodes.

datatype_icon

LIN schedule entry out

The I/O name of the newly created LIN schedule entry object.

datatype_icon

error out

Error information.

The node produces this output according to standard error behavior.

Standard Error Behavior

Description

This node creates an XNET schedule entry object. It is an instance of XNET Database Create Object.

Schedule entries is an ordered array in a schedule. The schedule is being processed in the order of this array. A newly created entry always is added to the last position of the array.

The LIN schedule entry name input becomes the Name (Short) property of the created object. This is distinct from the string contained in LIN schedule entry out, which uses the syntax described in XNET LIN Schedule Entry I/O Name.

The schedule entry object is created and remains in memory until the database is closed. This node does not change the open database file on disk. To save the newly created object to the file, use XNET Database Save.
