Specifying Connections in LO Connection Configuration Window

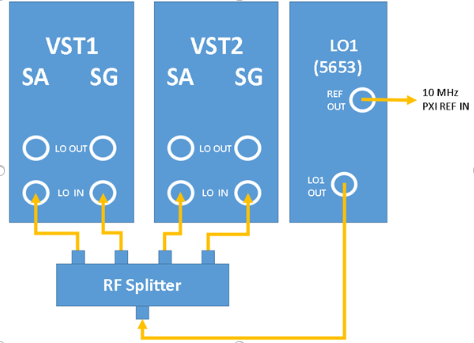

The following image illustrates a 2x2 MIMO system with external LO shared between SAs and SGs.

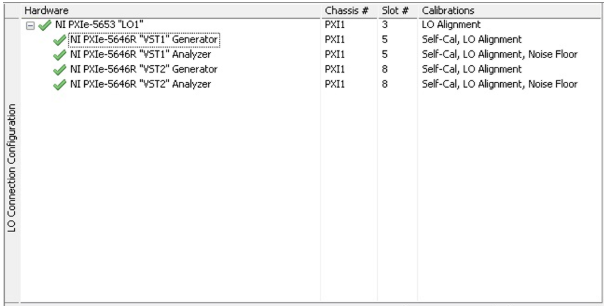

The WCU Connection Configuration Window for a 2x2 MIMO System with External LO shared between SAs and SGs is as shown in the following image.

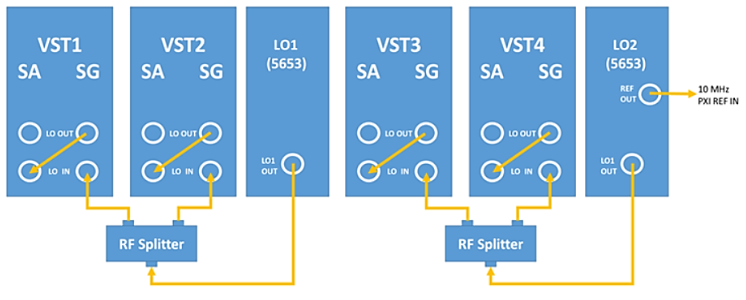

The following image illustrates a 4x4 MIMO/Multi-segment system with two external LOs shared between SGs. The SG LOs are exported to SAs.

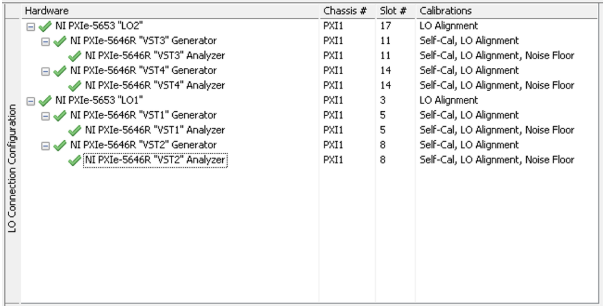

The WCU Connection Configuration Window for a 4x4 MIMO/Multi Segment System with two External LOs shared between SGs is shown in the following image. The SG LOs are exported to SAs.
