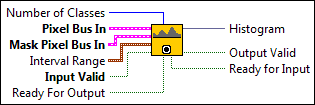

IMAQ FPGA Histogram VI

Total Latency = (((Image Width/8) + 1) x Image Height) + 4

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of (0, 0) ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of (0, 0) ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of (0, 0) ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of (0, 0) ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of 0 ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of 0 ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of 0 ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of 0 ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of (0, 0) ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of (0, 0) ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of (0, 0) ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of (0, 0) ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of 0 ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of 0 ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Number of Classes specifies the number of classes used to classify the pixels. The number of obtained classes differs from the specified amount in a case in which the minimum and maximum boundaries are overshot in the Interval Range. It is advised to specify a number of classes that is a power of two (for example, 2, 4, or 8). The default value is 256, which is designed for 8-bit images. This value gives a uniform class distribution or one class for each grayscale intensity in an 8-bit image.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Interval Range is a cluster specifying the minimum and maximum boundaries for the histogram calculation. Only those pixels having a value that falls in this range are taken into account by the histogram calculation. This cluster is composed of the following elements:

	Minimum is the minimum interval value. The default value of 0 ensures that the real minimum value is determined by the source image.
	Maximum is the maximum interval value. The default value of 0 ensures that the real maximum value is determined by the source image.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Histogram returns the histogram value of the pixel.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.
