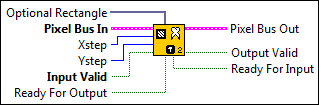

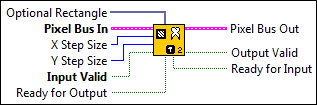

IMAQ FPGA Extract VI

This VI has variable latency, which is dependent on the image size. Plug the Minimum Latency value from the Estimated Performance section into the following formula to determine the total latency. The left and top values are parameters that should be supplied when the Optional Rectangle is used. If Optional Rectangle is not used or the extract is performed on the entire image, the left and top values are 0.

For the x1 VI instances, use this formula to calculate the total latency.

• Total Latency = Minimum Latency + (top * (Image Width + 1)) + left

For the x8 VI instances, use this formula to calculate the total latency.

• Total Latency = Minimum Latency + (top * (ceiling (Image Width/8) + 1) ) + ceiling (left/8) + X Step Size + 7

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Optional Rectangle defines a four-element array that contains the left, top, right, and bottom coordinates of the region to process. The right and bottom values are exclusive and lie outside the region. The VI applies the operation to the entire image if Optional Rectangle is empty or not connected.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Xstep is the vertical sampling step, which defines the columns to be extracted (the horizontal reduction ratio). For example, with an Xstep equal to 3, one out of every three columns is extracted from the Pixel Bus In into the Pixel Bus Out. Each column is extracted if the default value (1) is used.

Y Step Size is the horizontal sampling step, which defines the lines to be extracted (the vertical reduction ratio). Each row is extracted if the default value (1) is used.

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel. A is the value of the alpha plane. R/H is the red or hue value of the first color plane, depending on the color mode. G/S is the green or saturation value of the second color plane, depending on the color mode. B/L is the blue or luminance value of the third color plane, depending on the color mode.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.
