IMAQ FPGA Convolute VI

This VI has variable latency, which is dependent on the image size. Plug the Minimum Latency value from the Estimated Performance section into the following formula to determine the total latency. For the x1 VI instances, use this forumla to calculate the total latency:

• Total Latency = Minimum Latency + (Image Width+2)((Kernel Size/2) - 0.5) + 3

For the x8 VI instances, use this forumla to calculate the total latency:

• Total Latency = Minimum Latency + (Floor(Image Width/8)((Kernel Size/2) - 0.5) + 2)

When overclocking the x8 VI instances, use this forumla to calculate the total latency:

• Total Latency = Ceiling(Minimum Latency/2) + (Floor(Image Width/8) * ((Kernel Size/2) - 0.5)) + 3

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 3x3 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 3x3 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 3x3 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 3x3 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 5x5 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 5x5 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 5x5 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 5x5 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 7x7 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 7x7 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 7x7 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 7x7 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 9x9 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 9x9 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 9x9 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Overclock? must be connected to a constant. This parameter is set to TRUE when the SCTL clock is less than or equal to 60MHz. For SCTL clocks greater than 60MHz, this parameter must to be connected with a FALSE constant.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Clock is a required input when Overclock? is set to TRUE. This input requires a clock which is double the clock connected to the SCTL.

Convolution Kernel 9x9 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 3x3 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 3x3 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

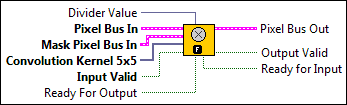

Convolution Kernel 5x5 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 5x5 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

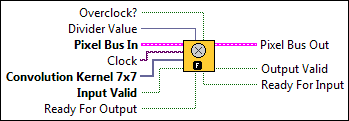

Convolution Kernel 7x7 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 7x7 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 9x9 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.

Divider Value is a normalization factor that can be applied to the sum of the obtained products. The VI expects the inverse of the Divider Value input. For example, if the Divider Value is calculated to be 25, take the inverse (1/25 = 0.04) and pass the inverse value to the VI. Refer to the Convolution Kernels topic in the NI Vision Concepts Help for more information.

Pixel Bus In when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Mask Pixel Bus In is an image that specifies the region of the image that will be copied. Only pixels in Pixel Bus In that correspond to a non-zero pixel in the mask image are copied. All other pixels are set to 0.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Convolution Kernel 9x9 is an array that contains the convolution matrix to apply to the image. The kernel buffer should be transposed and then converted to a 1D array before being passed to the Convolution Kernel parameter. For example:

Transpose to:

Convert to 1D array:

Input Valid specifies whether the next data point has arrived for processing. Wire the Output Valid output of an upstream node to this input to transfer data from the upstream node to this node.

Ready For Output specifies whether downstream nodes are ready for this node to return a new value. The default is TRUE. Use a Feedback Node to wire the Ready for Input output of a downstream node to this input of the current node.

Note  If this terminal is FALSE during a given cycle, the output valid terminal returns FALSE during that cycle.

Pixel Bus Out when Input Valid is TRUE, contains one of the following: valid pixel data, an end of line signal, or an end of image signal.

	Pixel Data is the value of the pixel.
	DV Data valid. Determines whether the Pixel Data element should be use (TRUE) or ignored (FALSE).
	EOL End of line. When TRUE, indicates that the end of the line has been reached.
	EOI End of image. When TRUE, indicates that the end of the image has been reached.
	Data Type is used in the block diagram for determining the type of the Pixel Bus. Unused during processing and gets optimized out of the compiled bit stream.

Output Valid returns TRUE if this node has computed a result that downstream nodes can use. Wire this output to the Input Valid input of a downstream node to transfer data from the node to the downstream node.

Ready for Input returns TRUE if this node is ready to accept new input data. Use a Feedback Node to wire this output to the Ready for Output input of an upstream node.

Note  If this terminal returns FALSE during a given cycle, LabVIEW discards any data that other nodes send to this node during the following cycle. LabVIEW discards this data even if the Input Valid terminal is TRUE during the following cycle.
