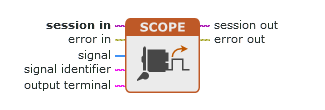

Export Signal
Configures the digitizer to generate a signal that other devices can detect when configured for digital triggering or sharing clocks.
Inputs/Outputs
session in
Handle that identifies the NI-SCOPE instrument session as previously allocated by Initialize With Options .
error in
Error conditions that occur before this node runs.
The node responds to this input according to standard error behavior.
Default value: No error
signal
The signal (clock, trigger, or event) to export.
| None | 0 | Does not generate a digital pulse. |
| Start Trigger | 2 | Generates a pulse at the start of the acquisition. |
| Advance Trigger | 5 | Generates a pulse when the digitizer is advancing to the next record. |
| Reference Trigger | 1 | Generates a pulse when detecting the stop/reference trigger. |
| End of Record Event | 4 | Generates a pulse at the end of each record. |
| End of Acquisition Event | 3 | Generates a pulse at the end of the acquisition. |
| Ready for Start Event | 7 | Asserts when the digitizer is initiated and ready to accept a start trigger to begin sampling. |
| Ready for Advance Event | 6 | Asserts when the digitizer is ready to advance to the next record. |
| Ready for Reference Event | 10 | Asserts when the digitizer is ready to accept a reference trigger. |
| Reference Clock | 100 | Exports the reference clock for the digitizer to the specified terminal. |
| Sample Clock | 101 | Exports the sample clock for the digitizer to the specified terminal. |
| 5 Volt Power | 13 | Exports a 5 V power source. |
Default value: Start Trigger
signal identifier
The signal to be exported.
Default value: None
output terminal
The hardware signal line that contains the digital pulse.
| None | VAL_NO_SOURCE | No output terminal. |
| PXI Trigger Line 0/RTSI 0 | VAL_RTSI_0 | Outputs the digital pulse on the 0 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 1/RTSI 1 | VAL_RTSI_1 | Outputs the digital pulse on the 1 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 2/RTSI 2 | VAL_RTSI_2 | Outputs the digital pulse on the 2 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 3/RTSI 3 | VAL_RTSI_3 | Outputs the digital pulse on the 3 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 4/RTSI 4 | VAL_RTSI_4 | Outputs the digital pulse on the 4 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 5/RTSI 5 | VAL_RTSI_5 | Outputs the digital pulse on the 5 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 6/RTSI 6 | VAL_RTSI_6 | Outputs the digital pulse on the 6 trigger line of a PXI chassis or an RTSI bus. |
| PXI Trigger Line 7/RTSI 7 (RTSI Clock) | VAL_RTSI_7 | Outputs the digital pulse on the 7 trigger line of a PXI chassis or RTSI bus, or the clock terminal of an RTSI bus. |
| PXI Star Trigger | VAL_PXI_STAR | Outputs the digital pulse on the star trigger lines of a PXI chassis. |
| PFI 0 | VAL_PFI_0 | Outputs the digital pulse on the PFI 0 line of a PXI chassis. |
| PFI 1 | VAL_PFI_1 | Outputs the digital pulse on the PFI 1 line of a PXI chassis. |
| PFI 2 | VAL_PFI_2 | Outputs the digital pulse on the PFI 2 line of a PXI chassis. |
| PFI 3 | VAL_PFI_3 | Outputs the digital pulse on the PFI 3 line of a PXI chassis. |
| PFI 4 | VAL_PFI_4 | Outputs the digital pulse on the PFI 4 line of a PXI chassis. |
| PFI 5 | VAL_PFI_5 | Outputs the digital pulse on the PFI 5 line of a PXI chassis. |
| PFI 6 | VAL_PFI_6 | Outputs the digital pulse on the PFI 6 line of a PXI chassis. |
| PFI 7 | VAL_PFI_7 | Outputs the digital pulse on the PFI 7 line of a PXI chassis. |
| Clock Out | VAL_CLK_OUT | Outputs the digital pulse on the ClkOut terminal. |
Default value: None
session out
Reference to the NI-SCOPE instrument session to pass to the next node in the program.
error out
Error information.
The node produces this output according to standard error behavior.
Using Export Signal Parameters
The signal parameter specifies what condition causes the digitizer to generate the signal. The output terminal parameter specifies where to send the signal on the hardware (such as a PFI connector or RTSI line).
Single and Multiple Instances
In cases where multiple instances of a particular signal exist, use signal identifier to specify which instance to control. For normal events, only one instance exists and you should leave signal identifier set to None. You can call this node multiple times and set each available line to a different signal.
Unprogramming a Line
To unprogram a specific line on a device, call this node, with the signal you no longer want to export and set output terminal to None.
