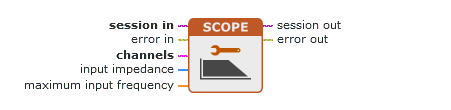

Configure Channel Characteristics

Download PDF

Configures the properties that control the electrical characteristics of the channel.

This function configures the input impedance and the bandwidth.

Inputs/Outputs

Handle that identifies the NI-SCOPE instrument session as previously allocated by Initialize With Options .

Error conditions that occur before this node runs.

The node responds to this input according to standard error behavior.

Default value: No error

The channel(s) from which to acquire data.

This input parameter has the following syntax options:

A single channel, such as 0
A list of channels, such as 0,1 or 3,2,1,0
A range of channels, such as 0-7 or 0:7
A combination of channels from multiple instruments, such as PXI1Slot3/0,PXI1Slot3/2-3,PXI1Slot4/2-3

Note The order of channels in a list is important. The data for each channel is returned in the order the channels occur in the list.

The input impedance for the channel.

1 mega ohm	0	Sets the input impedance to 1 mega ohm.
50 ohms	2	Sets the input impedance to 50 ohms.

Default value: 1 mega ohm

The bandwidth of the channel at which the input circuitry attenuates the signal by 3 dB.

Pass 0 for this value to use the hardware default bandwidth. Pass -1 for this value to achieve full bandwidth.

Default value: 0.00

Reference to the NI-SCOPE instrument session to pass to the next node in the program.

Error information.

The node produces this output according to standard error behavior.
