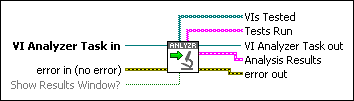

VIAn Run VI

Owning Palette: VI Analyzer VIs

Requires: VI Analyzer Toolkit

Analyzes VIs using the settings that VI Analyzer Task in specifies. You can wire the results to the VIAn Easy Report VI.

	VI Analyzer Task in contains a reference to the current task. The VI Analyzer task must be a valid task that you created using the VIAn New Task VI.
	error in describes error conditions that occur before this node runs. This input provides standard error in functionality.
	Show Results Window? (F) specifies whether to show the VI Analyzer Results Window after the VI completes execution.
	VIs Tested returns an array of paths to every VI analyzed.
	Tests Run returns an array of strings containing the names of all the tests run in the analysis.
	VI Analyzer Task out returns a reference to the VI Analyzer task specified in VI Analyzer Task in.
	Analysis Results returns the results of the VI Analyzer task. Wire this output to the Analysis Results input of the VIAn Easy Report VI. Raw Results contains the unparsed results data for every test and every VI in the VI Analyzer task. Test Name displays the name of the test. Results Data contains the unparsed results for the test specified in Test Name. Status indicates whether the test in Test Name passed or failed. Exceed Max Fails? indicates whether the test in Test Name failed more than the maximum number of times specified for that test. Parsed Results Data (by VI) contains the results by VI for every test in the VI Analyzer task, including which tests passed and failed, which tests the VI Analyzer could not load or run, and which errors occurred. VI Path contains the path to the VI for which the test results are listed. Pass contains data on the tests that passed for the VI specified in VI Path. Fail contains data on the tests that failed for the VI specified in VI Path. Skipped contains data on the tests that the VI Analyzer skipped for the VI specified in VI Path. VI not loadable contains data on whether the VI Analyzer was able to load the VI specified in VI Path. Test not loadable contains data on the tests that the VI Analyzer was not able to load for the VI specified in VI Path. Test not runnable contains data on the tests that the VI Analyzer was not able to run for the VI specified in VI Path. Test error out contains data on errors that occurred when the VI Analyzer performed tests on the VI specified in VI Path. Parsed Results Data (by Test) contains the results of every test and whether the VI Analyzer passed, failed, or skipped the test for every VI in the VI Analyzer task. Test Name displays the name of the test. Pass contains data on each VI that passed the test specified in Test Name. Fail contains data on each VI that failed the test specified in Test Name. Skipped contains data on each VI for which the VI Analyzer skipped the test specified in Test Name. Summary Statistics contains the summary for a VI Analyzer task. Passed Tests indicates the total number of tests in the VI Analyzer task that passed. Failed Tests indicates the total number of tests in the VI Analyzer task that failed. Skipped Tests indicates the total number of tests in the VI Analyzer task that the VI Analyzer skipped. VIs not loadable indicates the total number of VIs that the VI Analyzer could not load. Tests not loadable indicates the total number of tests that the VI Analyzer was not able to load. Tests not runnable indicates the total number of tests that the VI Analyzer was not able to run. Test error out indicates the total number of errors that occurred during the analysis. Start Time indicates the time when the analysis began. Total Time (s) indicates the time it took for the VI Analyzer to run the analysis. Test Config Data contains the configuration settings for every test included in the VI Analyzer task.
	error out contains error information. This output provides standard error out functionality.
