MT LDPC Generate Regular Parity Check Matrix
- Updated2023-02-17
- 2 minute(s) read

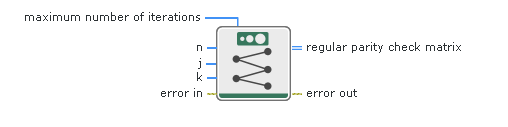

MT LDPC Generate Regular Parity Check Matrix
Generates a regular parity check matrix that is used by MT LDPC Encoder for LDPC encoding. In this node, the number of ones in each column and the number of ones in each row are kept constant.
Inputs/Outputs
n
The number of columns in the parity check matrix.
Default value: 12
j
The number of ones in the columns of LDPC code. j must be an odd number.
Default value: 3
k
The number of ones in the rows of LDPC code.
Default value: 0
error in
Error conditions that occur before this node runs.
The node responds to this input according to standard error behavior.
Default value: No error
maximum number of iterations
The maximum number of iterations to return a parity check matrix that is not rank deficient.
Default value: 30
regular parity check matrix
The regular parity check matrix generated by this node.
error out
Error information.
The node produces this output according to standard error behavior.
