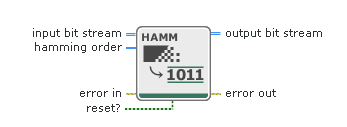

MT Hamming Decoder (Non-Systematic, Message-Generator Product)

Decodes a code word available as a polynomial product of the data word and generator polynomials.

Generates an order-m Hamming-decoded bit stream.

1378

Inputs/Outputs

datatype_icon

input bit stream

Bit sequence representing the code word to decode. Use MT Hamming Encoder to generate this encoded bit stream.

Tip To ensure that the output bit stream returned by this node corresponds to the entire message, set the length of input bit stream to be an integer multiple of the data word length n, where n = 2m-1 and is the length of the Hamming code word. If the length of input bit stream is not an integer multiple of n, the last {length(input bit stream) modulo n} bits are buffered in the encoder. These bits are added to the beginning of the incoming bit stream during the beginning of the next iteration if reset? is set to FALSE.
datatype_icon

hamming order

The Hamming order m sets the Hamming code with data word length equaling 2m-m-1 and code word length equaling 2m-1. Valid values are 2 to 16, inclusive.

Default value: 3

datatype_icon

error in

Error conditions that occur before this node runs.

The node responds to this input according to standard error behavior.

Standard Error Behavior

Default value: No error

datatype_icon

reset?

A Boolean that determines whether the internal state of the decoder is cleared.

TRUE Clears any buffered bits from previous iterations. Also initializes the Galois field structure corresponding to the Hamming code values.
FALSE Continues decoding from the previous iteration. Any buffered bits from the previous iteration are added to the beginning of the input bit stream prior to decoding.
Tip The initialization of the Galois field structure may consume significant amounts of time for code word lengths greater than 127. Once initialized, the same Galois field structure is used in every iteration thereafter, provided reset? is FALSE. To improve the performance of this node, set reset? to TRUE for the first iteration and FALSE thereafter.

Default value: TRUE

datatype_icon

output bit stream

Bit sequence encoded by this node.

datatype_icon

error out

Error information.

The node produces this output according to standard error behavior.
