MT Generate CPM Synchronization Parameters (bit array)
Generates synchronization parameters for CPM demodulation using a synchronization sequence directly represented by the sync bits array. The generated synchronization parameters cluster avoids phase ambiguity at the demodulator, thus allowing recovery of the actual message bits.
.png?_LANG=enus)

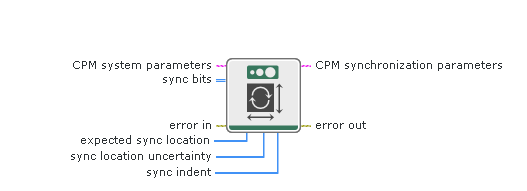

Inputs/Outputs

CPM system parameters
Parameter values defining the CPM system. Wire the CPM system parameters cluster of MT Generate CPM System Parameters (M) or MT Generate CPM System Parameters (map) to this cluster. Do not alter the values.

samples per symbol
An even number of samples dedicated to each symbol. Multiply this value by the symbol rate to determine the sample rate.
Default value: 16

symbol map
A two-dimensional array of desired frequency deviations. Each column corresponds to a symbol, with the binary representation of the column index being the mapped bit-representation of the symbol. Each row corresponds to a modulation index in the order in which it appears in the modulation index, h(i) parameter of MT Generate CPM System Parameters (M) or MT Generate CPM System Parameters (map).
Default value: Empty array

sync bits
An array of synchronization bits used to generate the CPM synchronization parameter cluster. For example, if you specify a preamble word of 1111 1111 1111 1110 for symbol synchronization, you can wire a 16-bit array with the above entries to the sync bits parameter. For reliable symbol synchronization, specify an array of length (10 × bits per symbol).
Default value: 0

error in
Error conditions that occur before this node runs.
The node responds to this input according to standard error behavior.
Default value: No error

expected sync location
The expected location of the synchronization parameters in symbols. Set this value to -1 to search the entire waveform for the synchronization symbols.
Default value: -1

sync location uncertainty
Number of symbols before or after the expected sync location where the first symbol of the sync sequence may be located. The node ignores this parameter if the expected sync location parameter is set to -1.
Default value: 10

sync indent
Distance that the sync sequence is indented into the information block.
The distance is the number of demodulated symbols preceding the sync sequence. For example, a value of 10 indicates that the output bit stream consists of 10 data symbols, followed by the sync sequence, followed by the remaining data symbols.
Default value: 0

CPM synchronization parameters
Synchronization parameters to pass to the demodulation node.
If the synchronization parameter passed to the demodulation node is left empty, the constellation of the demodulated waveform has a 90° carrier phase ambiguity for two-dimensional modulation schemes (QAM, QPSK, and higher order PSK) and a 180° carrier phase ambiguity for one-dimensional modulation schemes (PAM/ASK/BPSK).

expected sync location
The expected location of the first symbol of the sync sequence.
This value is an index to the input complex waveform. A value of -1 searches the entire input complex waveform and ignores the sync location uncertainty parameter.

sync sequence
The mapped symbol pattern. Although the data type is complex, only the real portion is used.
The real portion of the mapped symbols is the frequency deviation of the symbol value, and the imaginary portion is 0. To prevent false synchronization, configure this pattern so that there is a low probability of accidental correlation to nonsynchronized parts of the data stream. If this parameter is left empty, the signal is still demodulated.

sync location uncertainty
Number of symbols before or after the expected sync location where the first symbol of the sync sequence may be located. The node ignores this parameter if the expected sync location parameter is set to -1.
Default value: 10

sync indent
Distance that the sync sequence is indented into the information block.
The distance is the number of demodulated symbols preceding the sync sequence. For example, a value of 10 indicates that the output bit stream consists of 10 data symbols, followed by the sync sequence, followed by the remaining data symbols.
Default value: 0

error out
Error information.
The node produces this output according to standard error behavior.
