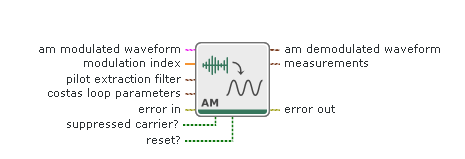

MT Demodulate AM (SSB)

Demodulates a single sideband (SSB) amplitude-modulated signal.

1378

Inputs/Outputs

datatype_icon

AM modulated waveform

The modulated complex baseband time-domain data for demodulation.

datatype_icon

t0

The trigger (start) time of the Y array.

Default value: 0.0

datatype_icon

dt

Time interval between data points in the Y array.

Default value: 1.0

datatype_icon

Y

The complex-valued time-domain data array. The real and imaginary parts of this complex data array correspond to the in-phase (I) and quadrature-phase (Q) data, respectively.

datatype_icon

modulation index

The expected modulation index of the AM demodulated waveform parameter. This value is used to scale the AM demodulated waveform parameter.

  • Set this value to the estimated modulation index of the incoming AM modulated waveform signal to scale the AM demodulated waveform parameter by this value. The resulting scaled AM demodulated waveform can be used to quantify error between the actual and expected modulation index.
  • Set this value to 1.0 to return an AM demodulated waveform with no scaling. When you set suppressed carrier? to FALSE, the peak amplitude value of the unscaled AM demodulated waveform represents the true modulation index of the incoming AM modulated waveform.
Note The node ignores the modulation index parameter if you set the suppressed carrier? to TRUE.

Default value: 1.0

datatype_icon

pilot extraction filter

Parameters used to locate the pilot tone and extract it from the specified AM modulated signal.

The node designs a bandpass filter for locating the pilot tone, and a band-reject filter for removing the pilot tone from the recovered signal, in a normalized frequency range:

[dt *approx freq. - 0.01 * search (± % of Fsampl)

dt * approx freq.+ 0.01 * search (± % of Fsampl)]

where Fsampl is the sampling rate of the AM modulated waveform parameter.

Note Carrier frequency offset can change the location of the pilot tone in the AM modulated waveform parameter. In such a case, specify a value for search (+/-% of Fsampl) large enough for the demodulator to locate the pilot tone in the presence of carrier frequency offset. For example, assuming a sample rate of 1.00 S/s, a pilot tone at 0.01 Hz, and a carrier frequency offset of 0.03 Hz, specify the following parameters for the pilot extraction filter cluster:
  • taps: 81
  • approx freq.: 0.01
  • search (± % of Fsampl): 5
datatype_icon

taps

The number of taps used to design the pilot tone extraction filter.

The number of taps you specify in the pilot extraction filter cluster is also used to set the number of taps used in the pilot removal or rejection filter before recovering the demodulated message signal. If the pilot tone is near the message bandwidth, the default number of taps specified in the pilot extraction tap cluster might be insufficient to provide enough pilot rejection. As a result, the demodulated message signal might be distorted, even though the pilot was successfully extracted. In such cases, NI recommends experimenting by increasing the number of filter taps, although the increase affects the execution speed of the demodulation node.

Default value: 81

datatype_icon

approx freq.

The estimated frequency, in hertz (Hz), of the pilot tone in the AM modulated waveform parameter.

Default value: 0

datatype_icon

search (+/- % of Fsampl)

The search window size as a percentage of the input sample rate (1/dt). To avoid erroneous detection of the pilot tone, ensure that this search window does not include any portion of the message spectrum.

Default value: 0.25

datatype_icon

costas loop parameters

Optional parameters controlling the Costas loop. Usually Beta is chosen to be less than 0.02 * Alpha. These parameters are used in tracking carrier phase offset in the specified AM modulated waveform. The default settings are typically unchanged except in the presence of severely time-varying carrier phase offset.

datatype_icon

Alpha

The parameter, in meters, as required by the Costas loop design.

Default value: 1 m

datatype_icon

Beta

The parameter as required by the Costas loop design.

Default value: 20 u

datatype_icon

error in

Error conditions that occur before this node runs.

The node responds to this input according to standard error behavior.

Standard Error Behavior

Default value: No error

datatype_icon

suppressed carrier?

A Boolean that determines whether the carrier has been suppressed in the incoming modulated waveform.

Default value: FALSE

datatype_icon

reset?

A Boolean that determines whether the node continues demodulation using internal states from previous iterations.

TRUE The node redesigns the pilot extraction filter and clears the internal filter states on each call.
FALSE The node does not change the pilot extraction filter design across multiple calls, and sets the internal filter state to ensure continuous filter operation.

Default value: TRUE

datatype_icon

AM demodulated waveform

The recovered message signal.

Note Wire the AM demodulated waveform parameter to any LabVIEW waveform measurement node for further analysis. If the information signal is a single tone (normalized) and modulation index is set to 1.0 with suppressed carrier? set to FALSE, the peak amplitude value of the AM-demodulated waveform represents the true modulation index of the incoming AM-modulated waveform.
datatype_icon

measurements

The pilot tone location, carrier offset, and phase offset.

datatype_icon

extracted pilot tone

The location of the pilot tone in the AM modulated waveform frequency spectrum.

datatype_icon

frequency offset

The measured carrier frequency offset, Hz, of the specified AM modulated waveform.

datatype_icon

error out

Error information.

The node produces this output according to standard error behavior.

Standard Error Behavior

AM-SSB Demodulation

The AM-SSB demodulation procedure uses the transmitted pilot tone

ejωpilott
as a reference for performing coherent demodulation. The following diagram illustrates the AM-SSB demodulation procedure.

1378

During the process of AM-SSB demodulation, the received AM-SSB signal (assumed to be sampled at the sample frequency

fs
) is first resampled to a new sample frequency equaling 4
fs
. The resampled AM-SSB modulated baseband waveform is then upconverted to an intermediate frequency (IF) passband waveform at a carrier frequency of
fs
. The IF passband waveform is passed through a real IF pilot tone extraction filter and a real IF pilot tone rejection filter. The extracted pilot tone at the output of the IF pilot tone extraction filter is passed through a carrier phase and frequency offset estimator to estimate the channel impairments. The estimated carrier phase and frequency offset corrections are applied to the extracted AM-SSB modulated signal-only component at the output of the pilot tone rejection filter. The resulting recovered message signal is obtained after downconversion and resampling to the input sample rate
fs
.
