MT BCH Decoder (Non-Systematic, Message-Generator Product)

Decodes a code word available as a polynomial product of the data word and the generator polynomials. Performs decoding on a Bose-Chaudhari-Hocquenghem (BCH) encoded bit stream using the Berlekamp algorithm for binary BCH codes.

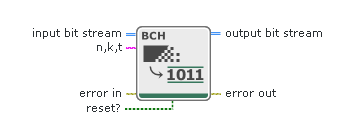

1378

Inputs/Outputs

datatype_icon

input bit stream

Bit sequence representing the code word to decode.

datatype_icon

n,k,t

Values of the code word length (n), data word length (k), and error correcting capacity (t), in bits. The n, k, and t values for BCH encoding are interrelated such that specifying two values constrains the third value. Select from a set of well-known (n,k,t) triples that are widely used for BCH encoding or specify an arbitrary triple by entering three comma-separated integers. The encoding scheme takes in a bit data word of k bits and produces a code word of n bits.

Default value: 7, 4, 1

Code Word Length Limits

n,k,tnnktn,k,tMT BCH EncoderMT BCH Decodernnmktnn,k,tn,k,t
datatype_icon

error in

Error conditions that occur before this node runs.

The node responds to this input according to standard error behavior.

Standard Error Behavior

Default value: No error

datatype_icon

reset?

A Boolean that determines whether the internal state of the decoder is cleared.

TRUE Clears any buffered bits from previous iterations. Also initializes the Galois field structure corresponding to the BCH n, k, t values.
FALSE Continues decoding from the previous iteration. Any buffered bits from the previous iteration are added to the beginning of the input bit stream prior to decoding.
Tip The initialization of the Galois field structure may consume significant amounts of time for code word lengths greater than 127. Once initialized, the same Galois field structure is used in every iteration thereafter, provided reset? is FALSE. To improve the performance of this node, set reset? to TRUE for the first iteration and FALSE thereafter.

Default value: TRUE

datatype_icon

output bit stream

Bit sequence decoded by this node.

datatype_icon

error out

Error information.

The node produces this output according to standard error behavior.

Standard Error Behavior
