Verifying System Setup

Before verifying system setup, you must turn on the following system components in sequence.
  1. OctoClock
  2. Ettus USRP X410
  3. PXI chassis
Complete the following steps on both the gNodeB and UE sides to verify system setup.
  1. Open NI MAX on the control PC.
  2. In NI MAX, verify the name of the Ettus USRP X410 in the gNodeB and UE systems is "X410". If not, change the name to "X410".
  3. Verify NI MAX detects all PXI modules in the PXI chassis and check the information of each module, such as slot number and alias.

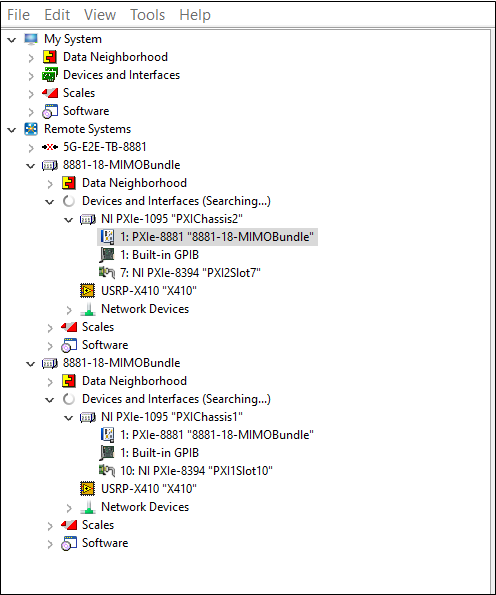

    The following figure shows example devices that NI MAX detects.

    Figure 3. Example Devices in NI MAX

    Example Devices in NI MAX

  4. Click the PXI controller to open System Settings.
  5. Check the system settings.

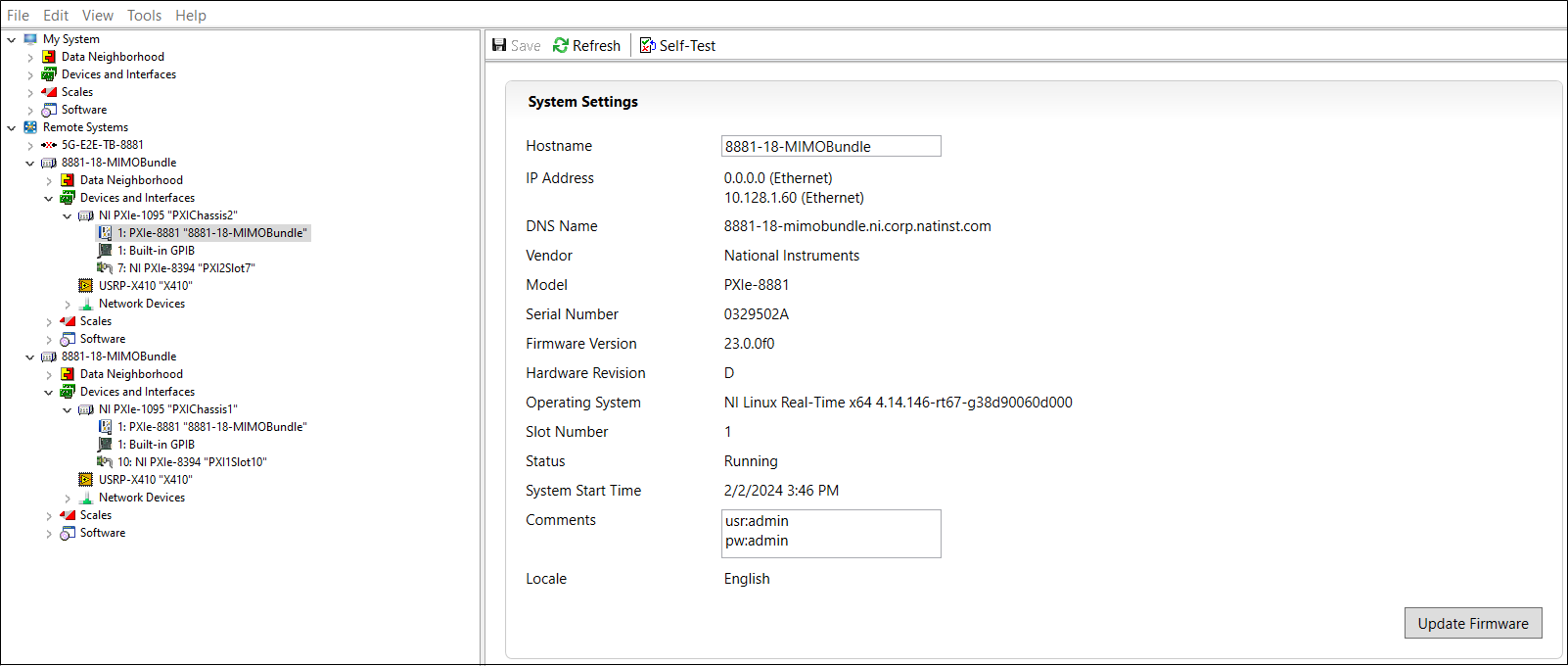

    The firmware version for PXIe-8881 must be 23.0.0f0 or later. The following figure shows example system settings.

    Figure 4. Example System Settings

    Example System Settings
