SI Pole-Zero Plot Indicator

Owning Palette: System Identification Indicators

Requires: Advanced Signal Processing Toolkit or Control Design and Simulation Module

Displays the pole-zero plot generated from the SI Pole-Zero Plot VI.

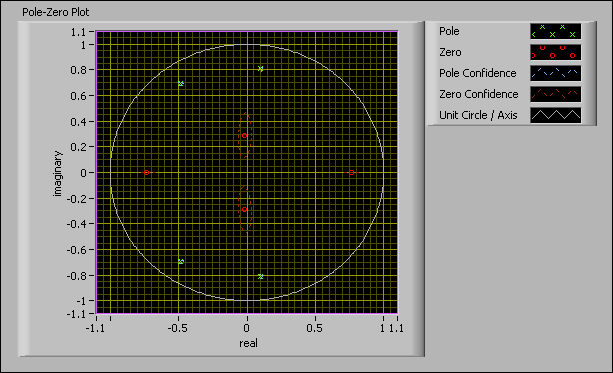

The above figure shows a pole-zero plot with sample data.
