SI Bode Plot Indicator

Owning Palette: System Identification Indicators

Requires: Advanced Signal Processing Toolkit or Control Design and Simulation Module

Displays the Bode plot generated from the SI Bode Plot VI.

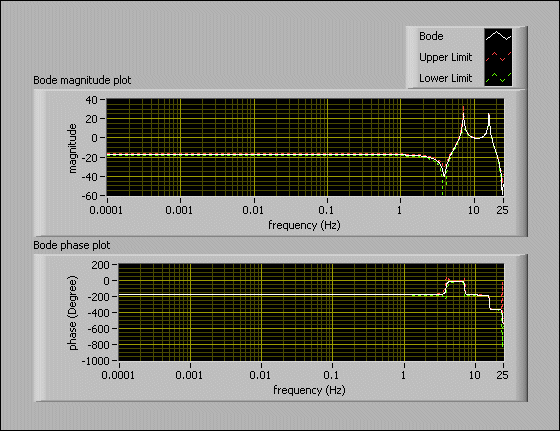

The above figure shows a Bode plot with sample data.
