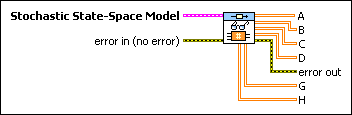

CD Get Data from Stochastic Model VI

Owning Palette: Stochastic Systems VIs

Requires: Control Design and Simulation Module

Obtains data that describes the dynamics of a stochastic state-space system model.

	Stochastic State-Space Model specifies a mathematical representation of a stochastic system.
	error in describes error conditions that occur before this node runs. This input provides standard error in functionality.
	A returns the system matrix that describes the dynamic of the states of the system.
	B returns the input matrix that relates the inputs to the states.
	C returns the output matrix that relates the outputs to the states.
	D returns the transmission matrix that relates the inputs to the outputs.
	error out contains error information. This output provides standard error out functionality.
	G returns a matrix that relates the process noise vector to the states.
	H returns a matrix that relates the process noise vector to the outputs.
