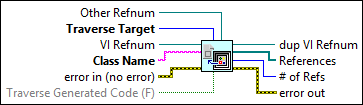

Searches a target for objects of a particular type and returns an array of references to those objects. The target can be a front panel, a block diagram, or any object that can contain other objects, such as a For Loop, a cluster, or a user-defined control. This VI also recursively finds objects nested within other container objects.


icon

Inputs/Outputs

  • cgnrn.png Other Refnum —

    Other Refnum is a reference to the container object you want to search if you specify the Traverse Target as Other. The reference must be a VI Server class that inherits from GObject, FlatSequenceFrame, or Page. LabVIEW ignores this input if Traverse Target is either FP or BD.

  • cenum.png Traverse Target —

    Traverse Target indicates the type of container object that you want to traverse. The following table contains the possible values for this input:

    0FP—Front panel
    1BD—Block diagram
    2Other—Container objects other than the front panel or block diagram. These include structure diagrams and clusters.
  • cvirn.png VI Refnum —

    VI Refnum is the reference to the VI you want to traverse. LabVIEW uses this input when Traverse Target is either FP or BD. LabVIEW ignores this input if you wire a reference to a specific container object to Other Refnum.

  • cstr.png Class Name —

    Class Name is the VI Server class name of the object for which you are searching.

  • cerrcodeclst.png error in (no error) —

    error in describes error conditions that occur before this node runs. This input provides standard error in functionality.

  • cbool.png Traverse Generated Code (F) —

    Traverse Generated Code specifies whether to traverse code that LabVIEW generates in the process of implementing certain functions. The default is FALSE.

  • ivirn.png dup VI Refnum —

    dup VI Refnum returns VI Refnum unchanged.

  • i1dgobrn.png References —

    References is an array of GObject references to the objects this VI finds. Use the To More Specific Class function to downcast each reference if necessary.

  • ii32.png # of Refs —

    # of Refs is the number of references in the References array.

  • ierrcodeclst.png error out —

    error out contains error information. This output provides standard error out functionality.

    • To use this VI, specify a Traverse Target of BD for block diagram or FP for front panel and the Class Name of the object you want to find. To traverse a specific container object instead of a front panel or block diagram, specify the target as Other and wire a reference to the specific object to the Other Refnum input.

    Examples

    Refer to the following example files included with LabVIEW.

    • labview\examples\Application Control\VI Scripting\Finding and Modifying Objects\Using Traverse.vi
