Uses the Levenberg-Marquardt algorithm to determine the set of parameters that best fit the set of input data points (X, Y) as expressed by a nonlinear function y = f(x,a), where a is the set of parameters. You must manually select the polymorphic instance to use.

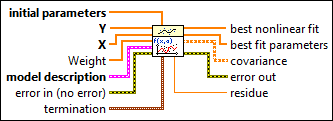

icon

Inputs/Outputs

  • c1ddbl.png initial parameters —

    initial parameters specifies the initial guess for best fit parameters. The length of initial parameters must equal the length of Parameters in model description.

    The success of the nonlinear curve fit depends on how close the initial parameters are to the best fit parameters. Therefore, use any available resources to obtain good initial guess parameters to the solution before you use this VI.

  • c1ddbl.png Y —

    Y specifies the array of dependent values, or the observations. The number of input points must be greater than zero.

  • c1ddbl.png X —

    X specifies the array of independent values. The number of input points must be greater than zero.

  • c1ddbl.png Weight —

    Weight is the array of weights for the observations Y. If Weight is unwired, this VI sets all elements of Weight to 1.

    If Weight has fewer elements than Y, this VI pads the end of Weight with ones so that the length of Weight equals the length of Y. If Weight has more elements than Y, this VI ignores the extra elements at the end of Weight. If an element in Weight is less than 0, this VI uses the absolute value of the element.

  • ccclst.png model description —

    model description specifies the formula string description of the model to which you want to apply a nonlinear curve fit. Where the Formula Nodes and the parser in the Mathematics VIs differ, this VI uses the parser syntax. For example, for exponentiation, use the parser syntax ^ rather than the Formula Node syntax **.

  • cstr.png model —

    model is a string describing the model equation. The formula can contain any number of valid variables.

  • c1dstr.png Parameters —

    Parameters is an array of strings of the unknown parameters.

  • cstr.png x —

    x specifies the independent variable.

  • cerrcodeclst.png error in (no error) —

    error in describes error conditions that occur before this node runs. This input provides standard error in functionality.

  • cnclst.png termination —

    termination specifies the stopping conditions for the fitting process.

  • ci32.png max iteration —

    max iteration specifies the largest number of iterations of the fitting routine. If the number of iterations exceeds max iterations, the fitting process terminates.

  • cdbl.png tolerance —

    tolerance specifies the relative change in the weighted distance between Y and the current fit. If the relative change falls below tolerance, the fitting process terminates.

  • i1ddbl.png best nonlinear fit —

    best nonlinear fit returns the y-values of the fitted model that correspond to the independent values in X.

  • i1ddbl.png best fit parameters —

    best fit parameters returns the array of parameters that minimizes the weighted mean square error between the best nonlinear fit and the observations in Y.

  • i2ddbl.png covariance —

    covariance returns the matrix of covariances.

    Cjk is the covariance between a[j] and a[k]. c[jj] is the variance of a[j]. This VI generates the covariance, C, according to the following equation: C = (0.5D)^–1 where D is the Hessian of the function with respect to its parameters.

  • ierrcodeclst.png error out —

    error out contains error information. This output provides standard error out functionality.

  • idbl.png residue —

    residue returns the weighted mean square error between the best nonlinear fit and Y.

    • This VI uses the Levenberg-Marquardt method to calculate the best fit parameters that minimize the weighted mean square error between the observations in Y and the best nonlinear fit. The following equation defines the curve model:

    y[i] = f(x[i], a0, a1, a2, …)

    where a0, a1, a2, … are the Parameters.

    The Levenberg-Marquardt method does not require y to have a linear relationship with the Parameters.

    The Hessian matrix is a common matrix in numerical optimization methods, such as the Newton method. To avoid the weakness of the singular Hessian matrix, the Levenberg-Marquardt method adds a positive definite diagonal matrix to the Hessian matrix. This positive definite diagonal matrix is the main difference between the Levenberg-Marquardt method and the Gauss-Newton method. Refer to Numerical Optimization in the Mathematics Related Documentation topic for more information about the Levenberg-Marquardt method.

    You can use the nonlinear Levenberg-Marquardt method to fit linear or nonlinear curves. However, when you fit a linear curve, the General Linear Fit VI is more efficient than this VI. You must verify the results you obtain with the Levenberg-Marquardt method because the method does not always guarantee a correct result.

    Examples

    Refer to the following example files included with LabVIEW.

    • labview\examples\Mathematics\Fitting\Ellipse fit.vi
    • labview\examples\Mathematics\Fitting\Sum of 3 Gaussians with offset fit.vi
    • labview\examples\Mathematics\Fitting\Gaussian surface with offset fit.vi
