Generates the step function for any real number x.


icon

Inputs/Outputs

  • cdbl.png x —

    x is any real number.

  • idbl.png step(x) —

    step(x) is the value of step(x) for the given value of x.

    • The following equation defines the step function.

    step(x) = 0 if x < 0 and 1 elsewhere
    Note You can define more complex functions by varying and combining the Step Function, Spike Function, and Square Function VIs, respectively.

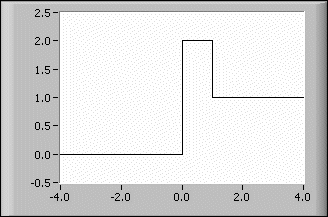

    The following illustration shows the graph for step(x) + spike(x) in the interval (–4.0, 4.0)
