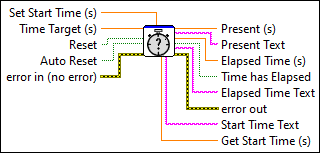

Elapsed Time

Controls the initialization of the internal state of the VI. The default is FALSE.

Specifies how much time must elapse before the Time has Elapsed Boolean is set to TRUE. The default is 1.

Resets the start time to the value in Present (s) when the Express VI reaches the Time Target (s).

Describes error conditions that occur before this node runs.

Uses the current time or a time offset from 12:00 a.m., Friday, January 1, 1904 [01-01-1904 00:00:00] as the start time instead of the time this VI first ran.

If the value is 0, the Express VI uses the current time as the start time. The Express VI uses any other value as the number of seconds offset from 12:00 a.m., Friday, January 1, 1904 [01-01-1904 00:00:00]. For example if the value is 1, the Express VI measures the elapsed time since 12:00:01 a.m., Friday, January 1, 1904 [01-01-1904 00:00:01]. You can wire this input to the Present (s) output of another Elapsed Time Express VI to get this value.

Displays the present time in seconds since 12:00 a.m., Friday, January 1, 1904, Universal Time [01-01-1904 00:00:00].

If Automatically reset after time target is FALSE, displays (in text format) the date and time the VI first ran or the time you wire to the Set Start Time (s) input. Otherwise displays the date and time of the last reset.

Displays the present date and time in text format.

Indicates if the Elapsed Time (s) is greater than the start time plus Time Target (s).

If Automatically reset after time target is FALSE, displays the date and time the VI first ran or the time you wire to the Set Start Time (s) input. Otherwise displays the date and time of the last reset.

Contains error information. This output provides standard error out functionality.

Displays the amount of time in seconds that has elapsed since the start time and the Present (s) time.

Displays the amount of time in seconds that has elapsed since the start time.
