Returns the exponential fit of a data set (X, Y) using the Least Square, Least Absolute Residual, or Bisquare method.


icon

Inputs/Outputs

  • c1ddbl.png Y —

    Y is the array of dependent values. The length of Y must be greater than or equal to the number of unknown parameters.

  • c1ddbl.png X —

    X is the array of independent values. X must be the same size as Y.

  • c1ddbl.png Weight —

    Weight is the array of weights for the observations (X, Y). Weight must be the same size as Y. Weight also must contain non-zero elements. If an element in Weight is less than 0, the VI uses the absolute value of the element.

    If you do not wire an input to Weight, the VI sets all elements of Weight to 1.

  • cdbl.png tolerance —

    tolerance determines when to stop the iterative adjustment of amplitude, damping, and offset. For the Least Square and Least Absolute Residual methods, if the relative difference between residue in two successive iterations is less than tolerance, this VI returns the resulting residue. For the Bisquare method, if any relative difference between amplitude, damping, and offset in two successive iterations is less than tolerance, this VI returns the resulting amplitude, damping, and offset.

    If tolerance is less than or equal to 0, this VI sets tolerance to 0.0001.

  • cu16.png method —

    method specifies the fitting method.

    0Least Square (default)
    1Least Absolute Residual
    2Bisquare
  • cnclst.png parameter bounds —

    parameter bounds contains the upper and lower constraints for the amplitude, damping, and offset. If you know the exact value of certain parameters, you can set the lower and upper bounds of the parameters equal to the known values.

  • cdbl.png amp min —

    amp min specifies the lower bound for the amplitude. The default value is –Inf, which means no lower bound is imposed on the amplitude.

  • cdbl.png amp max —

    amp max specifies the upper bound for the amplitude. The default value is Inf, which means no upper bound is imposed on the amplitude.

  • cdbl.png damping min —

    damping min specifies the lower bound for the damping. The default value is –Inf, which means no lower bound is imposed on the damping.

  • cdbl.png damping max —

    damping max specifies the upper bound for the damping. The default value is Inf, which means no upper bound is imposed on the damping.

  • cdbl.png offset min —

    offset min specifies the lower bound for the offset. The default value is 0, which means the offset must be greater than or equal to 0.

  • cdbl.png offset max —

    offset max specifies the upper bound for the offset. The default value is 0, which means the offset must be less than or equal to 0.

  • i1ddbl.png Best Exponential Fit —

    Best Exponential Fit returns the y-values of the fitted model.

  • idbl.png amplitude —

    amplitude returns the amplitude of the fitted model.

  • idbl.png damping —

    damping returns the damping of the fitted model.

  • idbl.png offset —

    offset returns the offset of the fitted model.

  • ii32.png error —

    error returns any error or warning from the VI. You can wire error to the Error Cluster From Error Code VI to convert the error code or warning into an error cluster.

  • idbl.png residue —

    residue returns the weighted mean error of the fitted model. If method is Least Absolute Residual, residue is the weighted mean absolute error. Otherwise, residue is the weighted mean square error.

    • This VI uses the iterative general Least Square method and the Levenberg-Marquardt method to fit data to an exponential curve of the general form described by the following equation:

    f = aebx + c

    where x is the input sequence X, a is amplitude, b is damping, and c is offset. This VI finds the values of a, b, and c that best fit the observations (X, Y).

    The following equation specifically describes the exponential curve resulting from the exponential fit algorithm:

    y[i] = aebx[i] + c

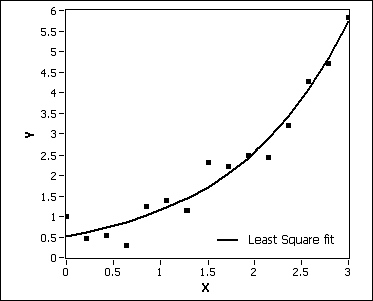

    If the noise of Y is Gaussian distributed, use the Least Square method. The following illustration shows the exponential fit result using this method.

    When you use the Least Square method, this VI finds the amplitude, damping, and offset of the exponential model by minimizing the residue according to the following equation:

    where N is the length of Y, wi is the ith element of Weight, fi is the ith element of Best Exponential Fit, and yi is the ith element of Y.

    The Least Absolute Residual and Bisquare methods are robust fitting methods. Use these methods if outliers in the observations exist. The following illustration compares the fit results of the Least Square, Least Absolute Residual, and Bisquare fitting methods. In most cases, the Bisquare method is less sensitive to outliers than the Least Absolute Residual method.

    When you use the Least Absolute Residual method, this VI finds the amplitude, damping, and offset of the exponential model by minimizing the residue according to the following equation:

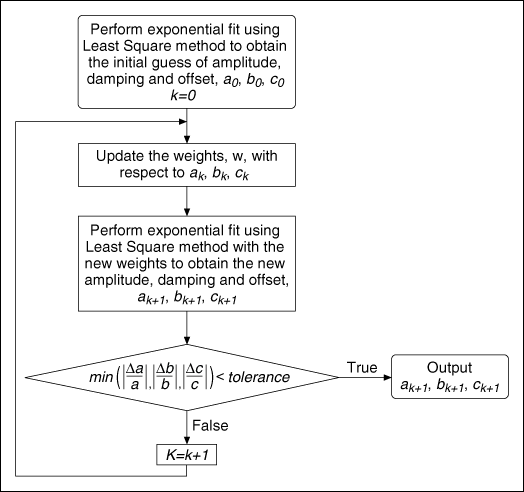

    When you use the Bisquare method, this VI obtains the amplitude, damping, and offset using an iterative process, as shown in the following illustration, and calculates the residue using the same formula as the Least Square method.

    Examples

    Refer to the following example files included with LabVIEW.

    • labview\examples\Mathematics\Fitting\Regression Solver.vi
    • labview\examples\Mathematics\Fitting\Linear, Exp, and Power Fit.vi
