When plug-ins load and run in FlexLogger, the application’s compiled data engine and the compiled plug-ins prevent interactive debugging with LabVIEW. The Plug-in Environment Simulator provides a simplified, test-specific environment that allows developers to run and debug plug-ins from the source G code.

The Plug-in Environment Simulator installs to %ProgramFiles%\National Instruments\LabVIEW <version>\resource\FlexLogger\SDK\Plugin Environment Simulator.

Note The Plug-in Environment Simulator does not support digital channels.

To enable interactive debugging of plug-in source code, the Simulator is provided as a VI as shown in the following figure.

Figure 2. Plugin Environment Simulator VI


To debug a plug-in, open and run the Plugin Environment Simulator VI. When the simulator starts running, it prompts you for the plug-in class to debug. The following figure displays the simulator running an unmodified Produce Data for FlexLogger plug-in.

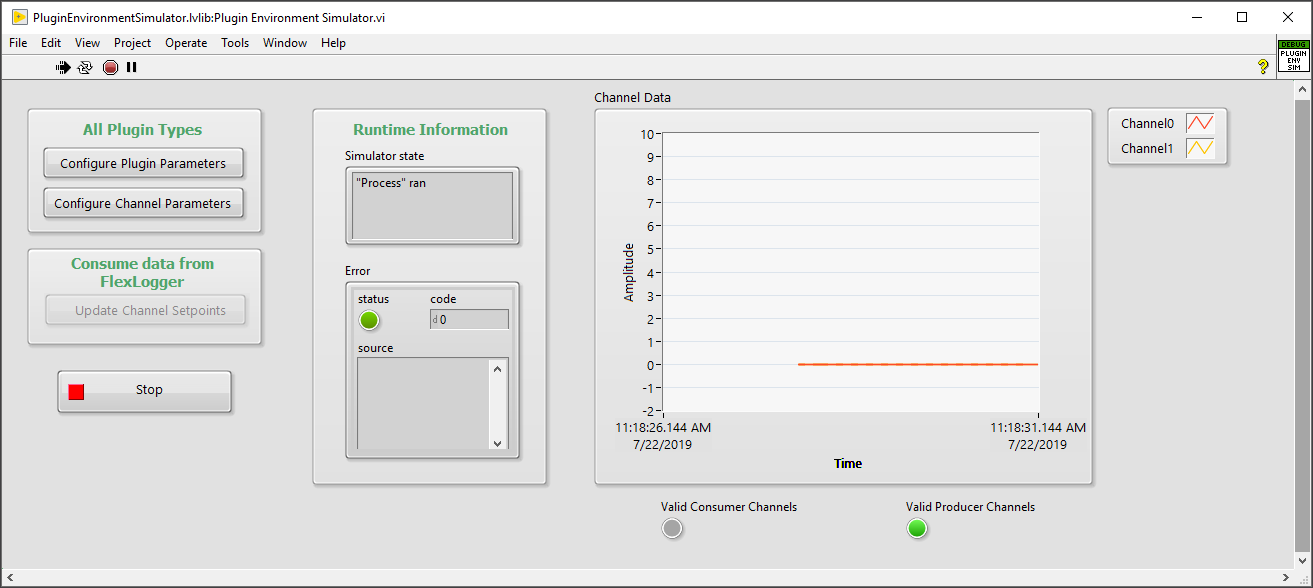

Figure 3. Plugin Environment Simulator — Produce Data for FlexLogger Plug-In


The Configure Plugin Parameters button allows you to update plug-in parameters.

Figure 4. Configure Plugin Parameters


Similarly, the Configure Channel Parameters allows developers to update channel parameters.

Figure 5. Configure Channel Parameters


Plug-ins following the consume setpoint data template do not write any data to FlexLogger, so the Channel Data chart shows the current setpoint values. The Update Setpoint Channels button provides the input information needed to write the correct values to an external system. The following figure shows setting the setpoint for an unmodified setpoint consumer plug-in example.

Figure 6. Update Setpoint Channels


When using waveform channel inputs with the simulator, it is first necessary to pick channel(s) that are mapped to the parameters. This mimics the behavior when interacting with the application. In the simulator, any designated name receives a constant value waveform. Configure mapped channels through the Configure Device Parameters dialog as shown in the following figures.

Figure 7. Configure Device Parameters


Figure 8. Configure Device Parameters


You can change the constant value using the Change Setpoint option.

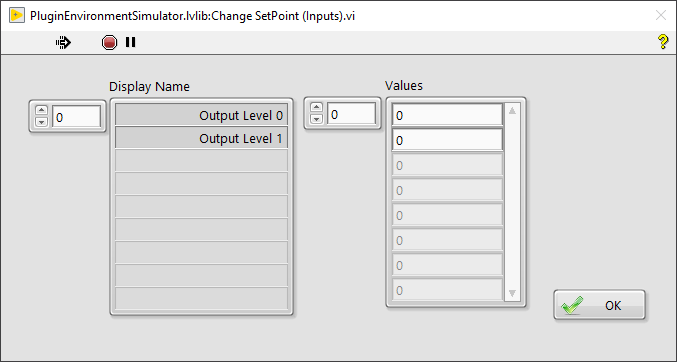

Figure 9. Change Setpoint Option
