What Is the NI CompactDAQ Sound and Vibration Measurement Bundle?

The CompactDAQ Sound and Vibration Measurement Bundle, based on CompactDAQ hardware, simplifies connecting microphones and accelerometers to a PC. Features include built-in IEPE/ICP excitation to power your sensors and reduce wiring or, disable sensor power and measure ±5 volts.

See pricing

Benefits of the CompactDAQ Sound and Vibration Measurement Bundle

Get Started Quickly

With up to 24-bit measurements at 51,200 samples/second/channel, connect right into the computer with USB to analyze or log data. Use example code and measurement templates to quickly create your test application with confidence.

Focus on Your Test

Sound and vibration modules are designed with sensor needs in mind. They are ideal for testing motor and bearing health, running order, or spectrum analysis. You can now focus more energy on the results rather than the acquisition.

Measure in Harsh Settings

This set of hardware includes NI’s popular and trusted instruments for sound and vibration measurements. It’s portable and works in harsh environments, withstanding operating temperatures from -40 °C – 70 °C and 50 g of shock.

Customize Your System

From 4 channels to 8 channels, simultaneous or multiplexed sampling, flexibility is key to manage design updates and customer requests. Adapt to changing needs by purchasing other measurement modules to swap or add to your system.

Choose the Best Bundle for Your Application



사운드 및 진동 입력 모듈 NI-9231 포함 단일 슬롯 섀시

높은 채널 카운트

NI에 문의하기 Please select your country to get pricing information

cDAQ-SV1100 Bundle (단일 슬롯, ±5 V, 51.2 kS/s, 24비트, 8채널)

  • 단일 슬롯 섀시 (cDAQ-9171)
  • 1개 사운드 및 진동 모듈 (NI-9231)
  • 동축 잭 연결
  • 멀티플렉스 샘플링



장바구니에 추가



사운드 및 진동 입력 모듈 NI-9234 포함 단일 슬롯 섀시

최고 인기 게시물

NI에 문의하기 Please select your country to get pricing information

cDAQ-SV1101 Bundle (단일 슬롯, ±5 V, 51.2 kS/s/ch, 24비트, 4채널)

  • 단일 슬롯 섀시 (cDAQ-9171)
  • 1개 사운드 및 진동 모듈 (NI-9234)
  • BNC 연결
  • 동시 샘플링



장바구니에 추가

사운드 및 진동 입력 모듈 NI-9234 포함 4슬롯 섀시

맞춤 구성 가능

NI에 문의하기 Please select your country to get pricing information

cDAQ-SV4202 Bundle (4슬롯, ±5 V, 51.2 kS/s/ch, 24비트, 2개의 4채널 모듈)

  • 4슬롯 섀시 (cDAQ-9174)

  • PXI 사운드 및 진동 모듈 (NI-9234)

  • BNC 연결

  • 동시 샘플링

  • 다른 측정 모듈을 위한 빈 슬롯 2개



장바구니에 추가

대체 텍스트 없음

분산 측정

NI에 문의하기 Please select your country to get pricing information

cDAQ-SV8203 Bundle (8슬롯, 5 V, 51.2 kS/s/ch, 24비트, 2개의 4채널 모듈)

  • 8슬롯 섀시 (cDAQ-9189)
  • PXI 사운드 및 진동 모듈 (NI-9234)
  • BNC 연결
  • 동시 샘플링
  • 다른 측정 모듈을 위한 빈 슬롯 6개



장바구니에 추가

Add or Swap Modules to Your Measurement Test System

View Other C Series Measurement Modules or contact us to tailor a product bundle with a selection of modules that perfectly meets your testing requirements

Learn How to Build a High-Channel-Count Test System

Download the Reference Architecture for information about creating a sensor-based measurement systems with 2,000+ channels with NI FlexLogger™ Software and NI CompactDAQ hardware.

높은 채널 카운트 테스트 시스템 구축 방법 알아보기

NI FlexLogger™ 소프트웨어 및 NI CompactDAQ 하드웨어를 사용하여 2,000개 이상의 채널로 센서 기반 측정 시스템을 생성하는 방법에 대한 정보는 참조 아키텍처를 다운로드하십시오.

Industry-Leading DAQ Software Included

Flexlogger Lite monitor to visualize live data

  • Free logging software—NI FlexLogger™ Lite
  • Seamless LabVIEW integration
  • Documented APIs with example programs for Python, C/C++, C#, and more
Help me choose software

Get Started with CompactDAQ and FlexLogger™



Explore our tutorial that shows you how to set up CompactDAQ hardware with FlexLogger, including software installation and activation, as well as connecting and configuring your hardware. Learn how easy it is to pair FlexLogger with your hardware to get faster results.



Support

cDAQ-SV1100 Bundle (cDAQ-9171 and NI-9231)

cDAQ-SV1101 Bundle (cDAQ-9171 and NI-9234)

cDAQ-SV4202 Bundle (cDAQ-9174 and NI-9234)

cDAQ-SV8203 Bundle (cDAQ-9174 and NI-9234)

View Other Bundles

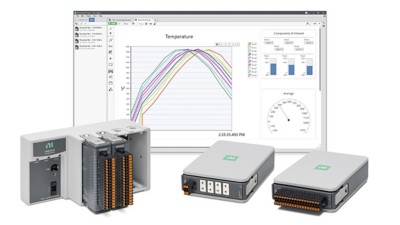

CompactDAQ Temperature Bundle

CompactDAQ Temperature Bundle

The CompactDAQ Temperature Measurement Bundle includes the C Series Sound and Vibration Input Module and a CompactDAQ Chassis.

Learn more

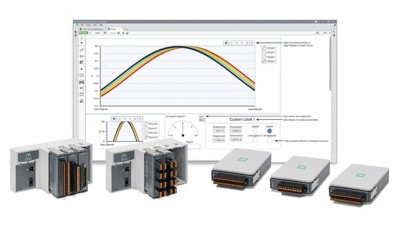

CompactDAQ Voltage Bundle

CompactDAQ Voltage Bundle

The CompactDAQ Voltage Measurement Bundle includes a CompactDAQ Chassis with a C Series Voltage Input Module for voltage measurements.

Learn more

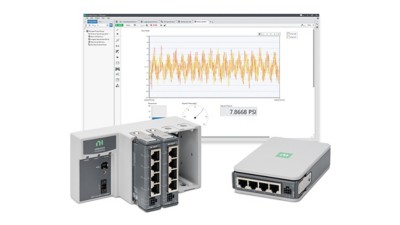

CompactDAQ Strain and Load Bundle
