NI CompactDAQ Measurement Bundles
CompactDAQ measurement bundles are preconfigured sets of NI’s most popular data acquisition hardware. These bundles help new customers get started in the following ways:
- Simple shopping experience, with a chassis, sensor measurement modules, and relevant accessories included
- Designed for specific measurement types with built-in signal conditioning
- Options for adding more channels or other measurement types with additional modules
- Compatible with NI LabVIEW, NI FlexLogger, Python, C, .NET, and more
Bundle and Save with Preconfigured Measurement Bundles
CompactDAQ measurement bundles offer the easiest and most cost-effective way to access the quality and flexibility of a CompactDAQ system. Each bundle includes everything you need—a chassis, sensor-specific modules, and essential accessories—for quick, plug-and-play setup.
The NI CompactDAQ Temperature Measurement Bundle provides a portable, USB-based sensor measurement system with features such as anti-aliasing filters, open-thermocouple detection, and cold-junction compensation for high-accuracy thermocouple measurements.
최저 비용
cDAQ-T1100 Bundle (단일 슬롯, ±80 mV, 14 S/s, 24비트, 4채널)
최고 인기 게시물
cDAQ-T1101 Bundle (단일 슬롯, ±78 mV, 74 S/s, 24비트, 16채널)
뛰어난 유연성
cDAQ-T4202 Bundle (4슬롯, ±78 mV, 74 S/s, 24비트, 2개의 16채널 모듈)
분산 측정
cDAQ-T8203 Bundle (8슬롯, ±78 mV, 74 S/s, 24비트, 2개의 16채널 모듈)

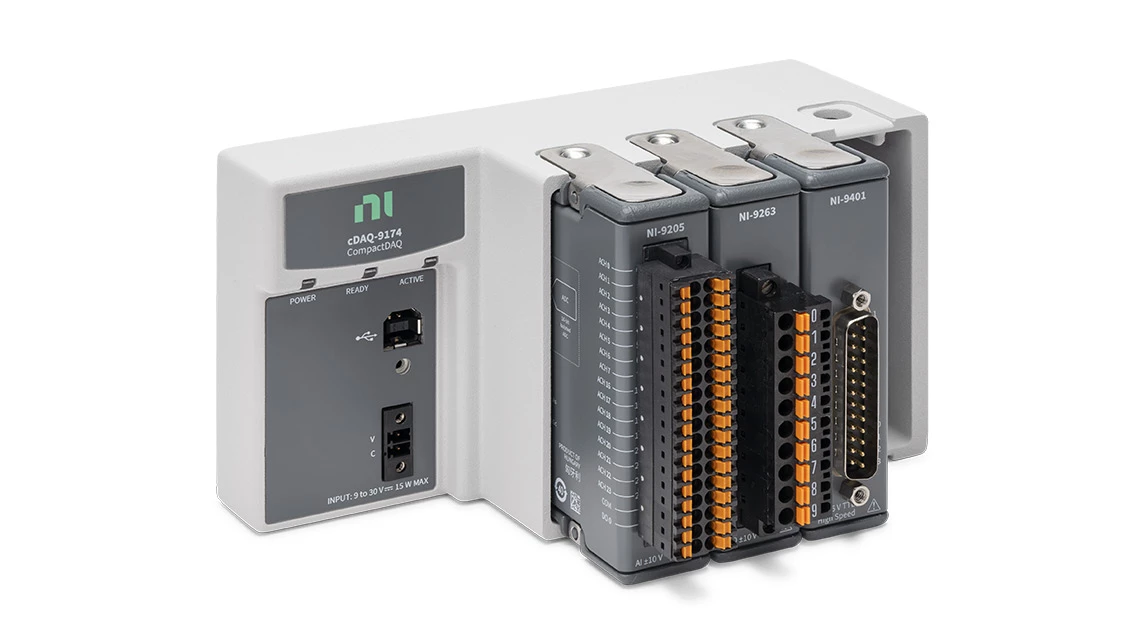

The NI CompactDAQ Voltage Measurement Bundle, based on CompactDAQ hardware, simplifies connecting electrical signals and voltage-output sensors to a PC. Improve your test coverage with the versatility of voltage measurements.
범용
cDAQ-V1100 Bundle (단일 슬롯, ±200 mV, ±1 V, ±5 V, ±10 V, 250 kS/s, 16비트, 16개 차동 및 32개 단일 종단형 채널)
동시 샘플링
cDAQ-V1101 Bundle (단일 섀시, ±10 V, 100 kS/s/ch, 16비트, 4개 차동 채널)
더 많은 채널을 사용한 동시 샘플링
cDAQ-V1102 Bundle (단일 슬롯, ±10 V, 100 kS/s/ch, 16비트, 16개 차동 채널)
다기능 I/O
cDAQ-MIO4300 Bundle (4슬롯, 최대 32, 16비트 단일 종단형 AI; 4, 16비트 100 kS/s/ch AO; 8, 100 ns 업데이트 속도, 5 V/TTL DIO)
범용 아날로그
cDAQ-U4200 Bundle (4슬롯, 100 S/s/ch, 24비트, 2개 4채널 모듈)
The NI CompactDAQ Sound and Vibration Measurement Bundle, based on CompactDAQ hardware, simplifies connecting microphones and accelerometers to a PC. Features include built-in IEPE/ICP excitation to power your sensors and reduce wiring—or, disable sensor power and measure ±5 volts.
높은 채널 카운트
cDAQ-SV1100 Bundle (단일 슬롯, ±5 V, 51.2 kS/s, 24비트, 8채널)
최고 인기 게시물
cDAQ-SV1101 Bundle (단일 슬롯, ±5 V, 51.2 kS/s/ch, 24비트, 4채널)
맞춤 구성 가능
cDAQ-SV4202 Bundle (4슬롯, ±5 V, 51.2 kS/s/ch, 24비트, 2개의 4채널 모듈)
분산 측정
cDAQ-SV8203 Bundle (8슬롯, 5 V, 51.2 kS/s/ch, 24비트, 2개의 4채널 모듈)
The NI CompactDAQ Strain and Load Measurement Bundle is based on CompactDAQ hardware. It simplifies connecting bridge-based load cells, pressure cells, or quarter-, half-, and full-bridge strain gages to a PC.
최고 인기 게시물
cDAQ-SL1100 Bundle (단일 슬롯, ±25 mV/V, 50 kS/s/ch, 24비트, 2채널)
맞춤 구성 가능
cDAQ-SL4201 Bundle (4슬롯, ±25 mV/V, 50 kS/s/ch, 24비트, 총 8채널)
분산 측정
cDAQ-SL8202 Bundle (8슬롯, ±25 mV/V, 50 kS/s/ch, 24비트, 총 8채널)
Many of the CompactDAQ Measurement Bundles are in a 4-slot or 8-slot chassis with extra slots for adding more modules of the same or other measurement types. Contact us to tailor a product bundle with a selection of modules that perfectly meets your testing requirements
Advanced Selection and Configuration
While measurement bundles provide combinations that work for most customers, others prefer advanced customization. Configure your own system with the NI CompactDAQ Advisor.
