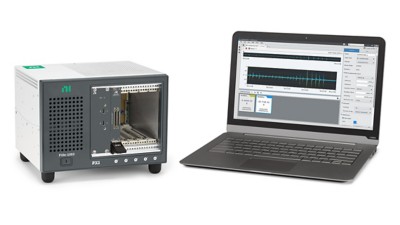

Engineers use the PXI Analog Input Bundle to validate and test electronic devices. Each bundle includes a PXI analog input module in a 5-slot PXI chassis that is controlled through a laptop’s Thunderbolt™ USB-C port, leaving four empty slots for future upgrades.
The PXI Analog Input Bundle offers a straightforward way to get started with PXI. With a software-defined analog input module and four slots that can synchronize different instruments, this bundle is ideal for building high-performance, mixed-measurement systems.
Test Workflow Pro
Use the remaining four slots to add more analog input modules or other instruments to the same PXI system. Synchronize multiple instruments in the chassis by using hardware-timed triggers over the PXI backplane.

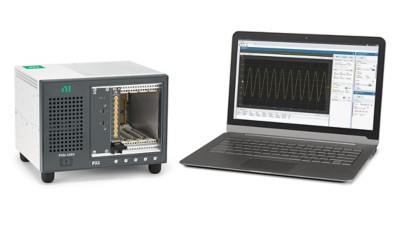

The PXI Oscilloscope Bundle includes a PXI Oscilloscope and a Thunderbolt-controlled 5-slot PXI chassis.
The PXI Digital Multimeter Bundle includes a PXI Digital Multimeter Module and a Thunderbolt-controlled 5-slot PXI Chassis.
The PXI LCR Meter Bundle includes a PXI LCR Meter and a Thunderbolt-controlled 5-slot PXI Chassis.
