Archived: Using LI-COR Light Sensors with NI Wireless Sensor Networks (WSN)

NI does not actively maintain this document.

This content provides support for older products and technology, so you may notice outdated links or obsolete information about operating systems or other relevant products.


Note: NI WSN products are not supported beyond LabVIEW 2015. If you have questions on migrating products, contact technical support at

This document describes the use of LI-COR light sensors with the NI Wireless Sensor Networks (WSN) system for wireless measurements of light radiation. This document is one in a series of documents describing how to use specific sensor products with the NI WSN system to enable a variety of applications, such as environmental monitoring, climate studies, and resource monitoring. For more information on using other sensors with the NI WSN system, please refer to the WSN Sensor Solutions document.


LI-COR LI-190, LI-191, LI-200, and LI-210 Terrestrial Light Sensors

LI-COR light sensors use a silicon photodiode to translate light energy to current.  When a photon of light with sufficient energy strikes the photodiode, it excites an electron, which in turn generates a microampere current as a result of the incident light on the photodiode’s surface.  LI-COR offers various light sensors which differ in the spectral response they have to different levels of light excitation, depending on what they are specifically meant to measure.


Figure 1.  LI-COR Light Sensors

In many applications across industries, light sensors are used to track, measure, and quantify light radiation.  Various types of light sensors are used in the field, and can be connected to the NI WSN for completely wireless measurements of light radiation in all of its forms.  For this discussion, we will focus on the use of light sensors to measure Photosynthetically  Active Radiation (PAR), Global Solar Radiation, and illumination.  A good description of the principals of radiation measurement can be found on LI-COR’s website at

Photosynthetically Active Radiation (PAR)

PAR is a measurement used to quantify how much energy, due to light from the sun, plants receive during photosynthesis.  LI-COR Quantum sensors are used to measure such a phenomenon, and quantify PAR in terms of Watts per square meter (W/m2) or in terms of Quanta (or photons) per time per square meter ( ).  For accurately measuring PAR produced by both natural and artificial lighting, the LI-COR LI-190 and LI–191 Quantum Sensors filter out all light frequencies outside of a 400 to 700 nm waveband as this is the active range of waveband that causes photosynthesis in most plants1.  As the instruction manual for the LI-190 and LI-191 sensors states:

The quantum sensor is designed to measure PAR received on a plane surface. The indicated sensor response is selected because it approximates the photosynthetic response of plants for which data are available. A silicon photodiode with an enhanced response in the visible wavelengths is used as the sensor. A visible bandpass interference filter in combination with colored glass filters is mounted in a cosine corrected head”1.

Typical applications for this type of sensor include greenhouses, plant canopies, and other controlled environment or laboratory conditions for measuring PAR.  When measuring PAR under natural and artificial light sources (including the sun), relative errors of measuring PAR with the LI-190 and LI-191 have been calculated to be less than ±5% 1.

1”LI-COR Terrestrial Radiation Sensors”. LI-COR Biosciences. Section 1. Page 1-1.

Global Solar Radiation

In many agricultural, meteorological, and solar energy applications, the measurement of global solar radiation can be useful.  For such a measurement a pyranometer sensor can be used to measure global solar radiation in terms of Watts per square meter (W/m2).  To measure global solar radiation, the LI-COR LI–200 is often used in an outdoor setting atop buildings, bridges, or anywhere where there are no obstructions in the way for it to sense the global solar radiation outside.  The spectral response of the LI-200 does not include the entire solar spectrum, so it must be used in the same lighting conditions as those under which it was calibrated. Therefore, the LI-200 should only be used to measure unobstructed daylight.  It should not be used under vegetation, artificial lights, in a greenhouse, or for reflected solar radiation.


When interested in measuring the amount of light that a light source provides for interior/industrial, or outdoor settings, measuring the illumination, or the amount of visible light, may be a useful application.  In order to measure such a quantity, photometric sensors are used to measure illumination in terms of lux (1 footcandle = 10.764 lux).  For measurements of lux, the LI-COR LI-210 can be used indoors or outdoors.  Some of the applications for the LI-210 Photometric Sensor include interior and industrial lighting, outdoor illuminance, passive solar energy, architecture and lighting models, illumination engineering, and biological sciences that require illuminance measurements.

Wireless Light Measurement

Light sensors, though used in various settings, are typically deployed in mass quantities when measuring the overall effect light has on a given area indoors or outdoors.  This way instead of just receiving information about the light at one point, one can characterize the light and radiation on a large area or at remote locations.    When using a deployed array of light sensors in the field, wired measurements can become disorganized and expensive very quickly.   Fortunately, the LI-COR light sensors can easily interface with the NI WSN-3202 nodes to easily configure and deploy a distributed, wireless light measurement system.

Connecting the LI-COR Light Sensors to the WSN-3202 Node

LI-COR light sensors are self-powered and generate a low-level micro-ampere current that is proportional to the radiation intensity.   In order to measure the output signal from the light sensors, one must convert the low-level micro-ampere current to a voltage signal using a precision shunt resistor.  LI-COR offers the LI 2290 and LI 2220 millivolt adapters to convert current to voltage for the LI-190, LI-191, LI-200, and LI-210, using an internal shunt resistor, as seen in the table below.

 Sensor(s) Adapter
 LI-190, LI-191, LI-210 LI 2290 millivolt adapter (604 ohm resistance)
 LI-200 LI 2220 millivolt adapter (147 ohm resistance)

Table 1.  Adapters for converting current to voltage

The millivolt adapters can then be connected directly to an analog input channel fo the WSN-3202 analog input node, as shown below in Figure 2.

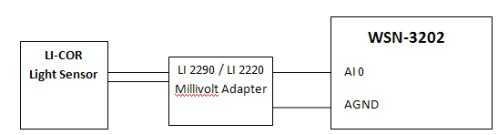

Figure 2.  Connecting LI-COR Light Sensor to WSN-3202

To simplify connecting LI-COR sensors to the WSN-3202 node, LI-COR also offers a line of LI-xxx SL versions of their sensors.  These sensors come with a millivolt adapter that has a variable resistance, offering a 0-10mV full scale output.

 Sensor   Standardized Output
 LI-190SL 10 mV/2000 μmol s-1 m-2
 LI-191SL 10 mV/2000 μmol s-1 m-2
 LI-200SL 10 mV/1000 W m-2
 LI-210SL 10 mV/100 klux

Table 2.  Standardized outputs for LI-COR Sensors

Programming NI WSN for Use with the LI-COR Light Sensors

Using LabVIEW on a Host PC with NI WSN-3202 and the LI-COR Light Sensors

Configuring a LabVIEW program to work with the LI-COR light sensors is very straightforward.  First, you should configure the input range of the WSN-3202 to an input range of ±0.5 V.  This can be set in the Data Configuration section of the NI WSN-3202 Properties window, accessed by right-clicking on the node in the LabVIEW Project.

When programming in LabVIEW, you read the input signal on an analog input channel of the WSN-3202 node via a LabVIEW shared variable.   This shared variable returns an unscaled voltage value, which must be scaled to the appropriate engineering units.  For instance, if using the LI-190 to measure PAR, you can use the LI-190 specifications to see that it outputs 5 µA per 1000 µmol s-1 m-2.  When used with the 604 ohm millivolt adapter, this corresponds to 3.02 mV per 1000 µmol s-1 m-2. An example block diagram of a LabVIEW program that takes a reading, scales the reading to degrees, and displays the value on the front panel, is show in Figure 3.  Consult your sensor’s specifications for proper scaling factors to use.


Figure 3.  LabVIEW block diagram to acquire, scale and display reading with LI-COR light sensor

Using LabVIEW WSN Embedded Programs on the NI WSN-3202 with the LI-COR Light Sensors

With LabVIEW WSN and the programmable version of the WSN-3202 node, you can download and run LabVIEW VIs on the WSN node for local data processing and control.  For example, you could perform the data scaling to engineering units locally on the node, filter the data, program a customized triggering or event detection algorithm, or perform local alarming in the node itself
