PXIe-4302
Starting at $4,890.00
783865-01
24-Bit, 32-Channel, 5 kS/s, ±10 V PXI Analog Input Module
Overview
The PXIe-4302 is a filtered input module for voltage, thermocouple, and current measurements. The module has an A/D converter per channel to enable a simultaneous sample rate of 5 kS/s. The PXIe-4302 offers you the ability to select a digital filter per channel to provide extra filtering performance. You also can operate up to four different sample rates and triggering configurations concurrently to ensure you measure every sensor as needed. The included NI-DAQmx driver simplifies hardware configuration and measurement.
Included Items
- Module
- Safety, Environmental, & Regulatory documentation
PXIe-4302 Details
Part Numbers (1) Price | 783865-01 |
|---|---|
| NI Lead Time | 7-8 weeks |
| Maximum Sample Rate | 5 kS/s/ch |
| Analog Input Voltage Range | -0.1 V to 0.1 V#-10 V to 10 V |
| Analog Input Isolation | — |
| Maximum Number of Differential Analog Input Channels | 32 |
| Analog Input Resolution | 24 bits |
| Discrete Low-Pass Filter | 2 Hz#20 Hz#200 Hz#1 kHz#2 kHz |
PXIe-4302 Accessories and Software
- Model (Part Number)DescriptionImageCompatible Part NumbersRM-4302 (783872-01)RM-4302, Rackmount TB for PXIe-4302/3 with in situ calibration783865-01TB-4302 (783869-01)TB-4302, Front mount terminal block for PXIe-4302/3783865-01TB-4302 (783871-01)TB-4302C,Current input front mount terminal block for PXIe-4302/3783865-01

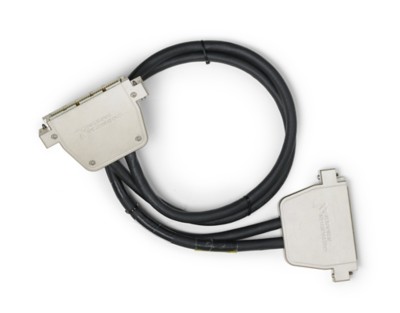

- Model (Part Number)DescriptionImageCompatible Part NumbersSH96-96-2 (157350-05)SH-96-96-2, Cable for PXIE-4302, PXIE-4303, and PXIE-4339 to Rackmount Terminal Blocks, 5 Meters783865-01SH96-96-2 (157350-03)SH-96-96-2, Cable for PXIE-4302, PXIE-4303, and PXIE-4339 to Rackmount Terminal Blocks, 3 Meters783865-01SH96-96-2 (157350-01)SH-96-96-2, Cable for PXIE-4302, PXIE-4303, and PXIE-4339 to Rackmount Terminal Blocks, 1 Meter783865-01
- Product (Part Number)DescriptionRecommended use casesFlexLogger Professional (785748-3501)FlexLogger Professional, Subscription License, Download
Recommended for automated, extensible data logging with NI data acquisition (DAQ) hardware. Automate tests using alarms, triggers, and events, and expand capabilities with plug-ins.
Key Features
- Multichassis synchronization—Synchronize multiple NI chassis for accurate, time-aligned measurements across high channel counts.
- Logging triggers—Start, stop, or segment data recording automatically based on sensor thresholds or other conditions to capture only what matters.
- Events—Respond to specific occurrences during a test, such as activating equipment when a condition is met (for example, start cooling fans when temperature exceeds a limit).
- Automation APIs—Control and monitor FlexLogger from external applications (Python, NI LabVIEW, or NI TestStand), enabling integration into larger automated test systems.
- Calculation channels—Perform real-time math on acquired data (averages, RMS, custom formulas) to track derived measurements as the test runs.
- Plug-ins—Extend FlexLogger with custom LabVIEW or Python plug-ins to integrate third-party hardware, perform custom analysis, or connect to lab systems.
- CAN/LIN logging—Acquire and log automotive network data alongside sensor measurements for complete vehicle or subsystem testing.
LabVIEW+ Suite (788509-35)NI LabVIEW+ Suite, Subscription License, DownloadRecommended for engineers building full test and validation systems where modular code development and higher-level frameworks are needed to accelerate development for shorter time to market.
The LabVIEW+ Suite includes the following products:
- NI LabVIEW—Provides a graphical programming environment for test system development, enabling connectivity to any instrument and fully integrated user interfaces.
- NI TestStand—Eliminates the need for time-intensive in-house sequencer development and maintenance by providing an off-the-shelf test management software for validation and production test.
- NI DIAdem—Saves engineers hundreds of hours of manual data analysis and report creation with automation.
- NI FlexLogger™ software—Simplifies data acquisition and data logging with interactive measurement setup for NI DAQ hardware.
- NI InstrumentStudio™ software—Provides a central location for configuration, measurement, and automation.
