PCIe-7841
Virtex-5 LX30 FPGA, 200 kS/s Multifunction Reconfigurable I/O Device
Overview
Included Items
- Device
- Safety, Environmental, & Safety, Environmental, & Regulatory documentation
PCIe-7841 Details
Part Numbers (1) Price | 781100-01 |
|---|---|
| NI Lead Time | 6-7 weeks |
| Maximum Sample Rate | 200 kS/s |
| Bus Connector | PCI Express |
| Maximum Clock Rate | 40 MHz |
| Number of Bidirectional Digital Channels | 96 |
| Digital I/O Logic Levels | 3.3 V#5 V |
| FPGA | Virtex-5 LX30 |
PCIe-7841 Accessories and Software
- Model (Part Number)DescriptionImageCompatible Part NumbersSCB-68 HSDIO (782914-01)SCB-68 HSDIO, Shielded 68-Pin Connector Block for R Series DIO & HSDIO Products781100-01SCB-68A (782536-01)SCB-68A Noise Rejecting, Shielded I/O Connector Block781100-01

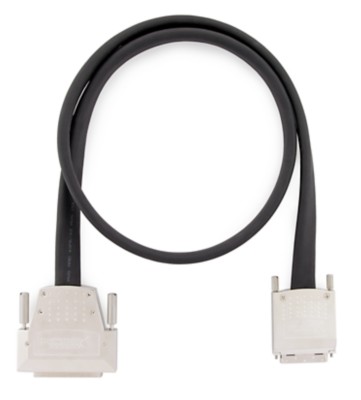

- Model (Part Number)DescriptionImageCompatible Part NumbersSHC68-68-RDIO Cable (191667-01)SHC68-68-RDIO Shielded Cable for DIO connector of the 7831R boards, 68pin D-Type to 68pin VHDCI, 1m781100-01SHC68-NT-S (189041-02)SHC68-NT-S Shielded Cable for 7831R boards, 68-pin VHDCI to unterminated, 2m781100-01SHC68M-68F-RMIO Cable (189588-02)SHC68-68-RMIO Shielded Cable for the Reconfigurable MIO Connector, 68 pin D-Type to 68 pin VHDCI, 2m781100-01
- Product (Part Number)DescriptionRecommended use casesLabVIEW Professional (784584-35)LabVIEW Professional Development System, Windows, All Languages, Subscription License, Download
Recommended for test, measurement, automation, and control applications; NI LabVIEW enables engineers to quickly connect to real-world systems, accelerate their productivity, and adapt to any challenge. LabVIEW provides the following capabilities:
- Connectivity to any Instrument regardless of vendor
- A native user interface for monitoring and controlling test
- Thousands of engineering analysis functions
- Seamless interoperability popular programming languages, such as Python, C, and .NET
LabVIEW FPGA Module (788434-35)LabVIEW FPGA Module, Subscription License, DownloadRecommended for applications with high-speed control loops, in-line signal processing, or high-reliability requirements. The LabVIEW FPGA Module allows you to develop and debug custom hardware logic that you can compile and deploy to NI FPGA-enabled hardware.
The LabVIEW FPGA Module is a software add-on for NI LabVIEW that you can use to more efficiently and effectively design FPGA-based systems through a highly integrated development environment, IP libraries, a high-fidelity simulator, and debugging features. You can create FPGA VIs that combine direct access to I/O with user-defined LabVIEW logic to define custom hardware for applications such as digital protocol communication, hardware-in-the-loop simulation, and rapid control prototyping. Though the LabVIEW FPGA Module contains many built-in signal processing routines, you can also integrate existing hardware description language (HDL) code as well as third-party IP.
LabVIEW+ Suite (788509-35)NI LabVIEW+ Suite, Subscription License, DownloadRecommended for engineers building full test and validation systems where modular code development and higher-level frameworks are needed to accelerate development for shorter time to market.
The LabVIEW+ Suite includes the following products:
- NI LabVIEW—Provides a graphical programming environment for test system development, enabling connectivity to any instrument and fully integrated user interfaces.
- NI TestStand—Eliminates the need for time-intensive in-house sequencer development and maintenance by providing an off-the-shelf test management software for validation and production test.
- NI DIAdem—Saves engineers hundreds of hours of manual data analysis and report creation with automation.
- NI FlexLogger™ software—Simplifies data acquisition and data logging with interactive measurement setup for NI DAQ hardware.
- NI InstrumentStudio™ software—Provides a central location for configuration, measurement, and automation.
